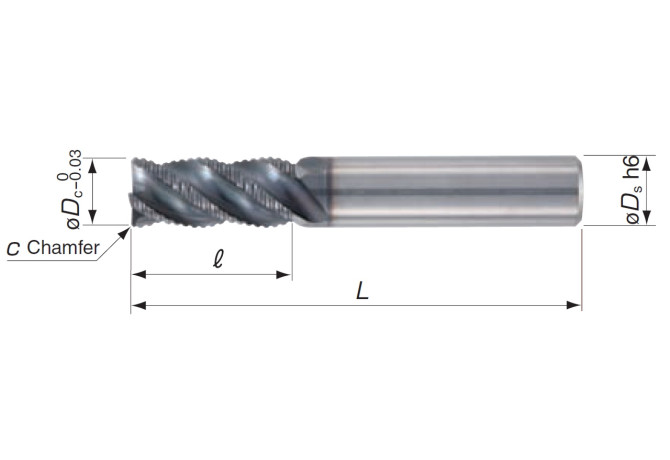

GSHV 4200SF

Артикул: GSHV 4200SF

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

38 mm

BMC Body material code

H - Solid carbide

CHW Corner chamfer width

1 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/21/2012

DIN

ZYL02000105

F71 Number of corner designs

FamilyProducts

GS MILL Heavy Endmill GSHV 4000SF Type

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

40 Degree

GRDMFG Grade manufacturers designation

ACZ20W

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

KCH Corner chamfer angle

45 Degree

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02000105

LPR Protruding length

55 mm

Materials

P,M,K,S,H

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

GSHV 4200SF

OAL Overall length

100 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
