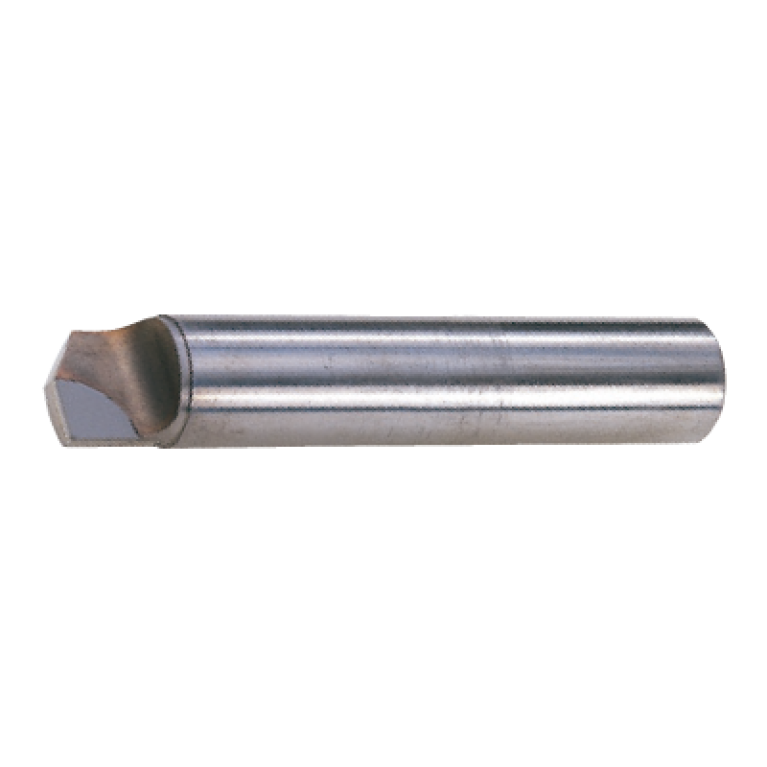

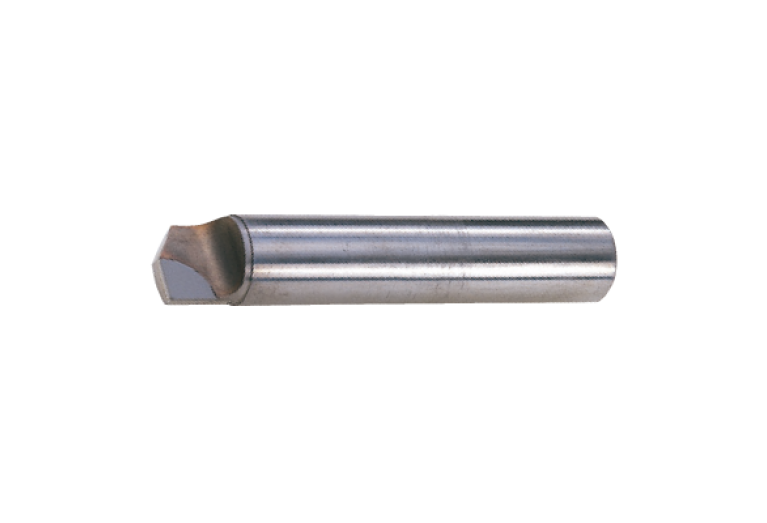

GBE08S0845 MB730

GBE08S0845 MB730 GBE08S0845 MB730 GBE08S0845 MB730 GBE08S0845 MB730

GBE08S0845 MB730

Mitsubishi Materials
Артикул: 10061442
В наличии
В корзину
Описание
Характеристики

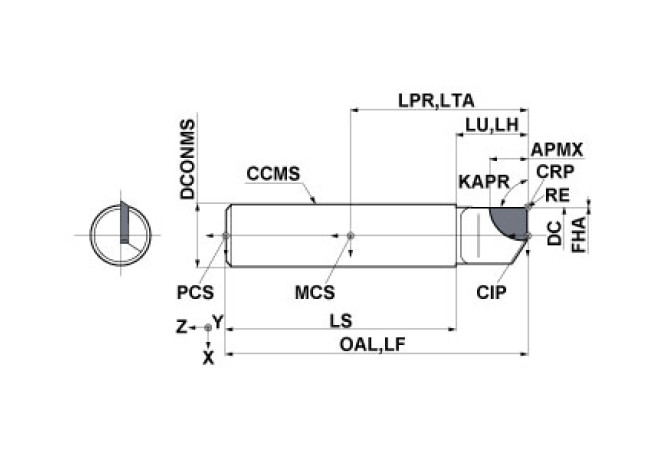

APMX Depth of cut maximum
6 mm
BMC Body material code
D - Solid steel with soldered hard-alloy inserts (BN or DP)
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2024
DIN
ZYL00800105
FamilyProducts
Carbide End mill, CBN , 1 flute
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
MB730
HAND Cutting direction
R - Right
ID Technical product number
10061442
Interface codes
J6 / J61
ISO
ZYL01F8000$$$$
ISYC Subclass
303-02 - Centre cutting end mill
LF Functional length
45 mm
LH Head length
13 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03 ISO
ZYL01F8000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00800105
LPR Protruding length
21 mm
LS Shank length
32 mm
LU Usable length
13 mm
Name Identifying order number

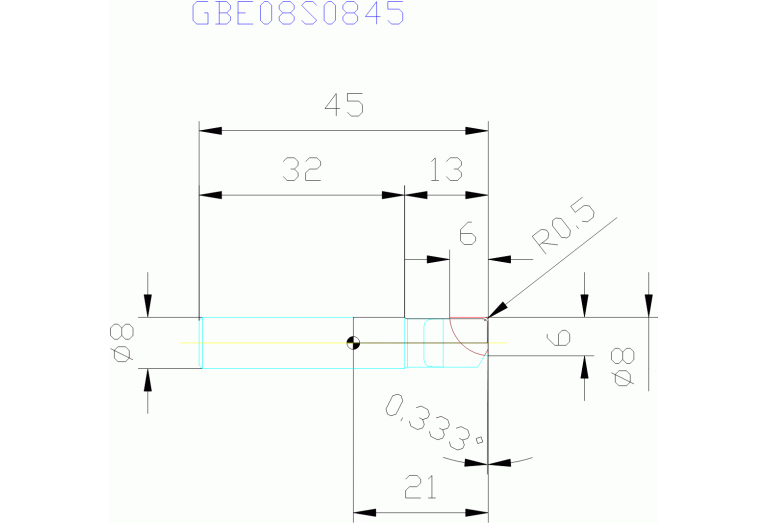

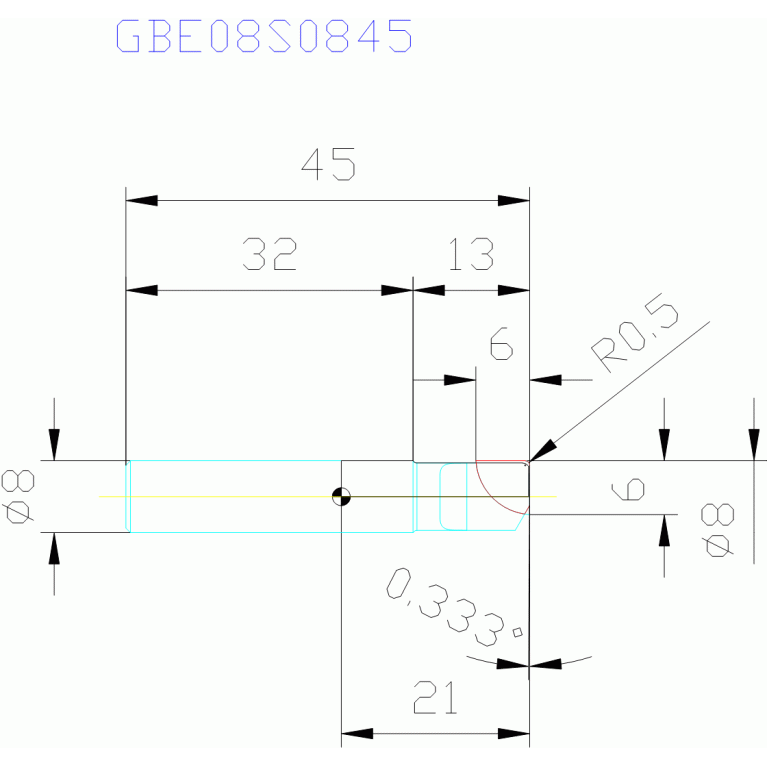

GBE08S0845 MB730
OAL Overall length
45 mm
RE Corner radius
0.5 mm
Working process
FPL - Face milling
ZEFF Face effective cutting edge count
1
ZEFP Peripheral effective cutting edge count
1
ZNC Cutting edge centre count
1
