Главная Каталог продукции Toolunited 15 303-02 - Centre cutting end mill F3AH0850ADN30 KC633M

F3AH0850ADN30 KC633M

Артикул: 2226764

В наличии

В корзину

Описание

Характеристики

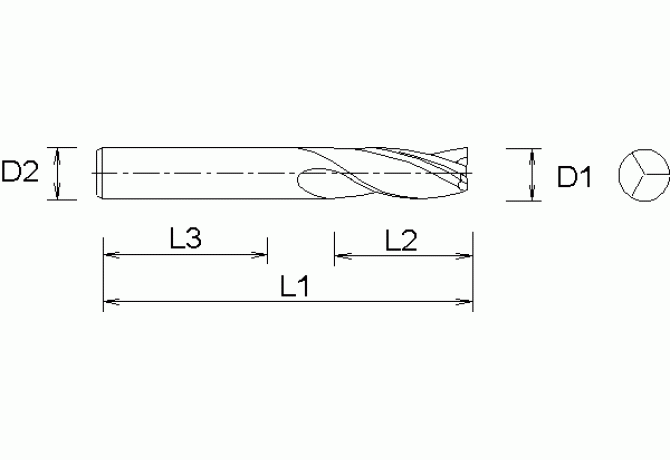

APMX Depth of cut maximum

16 mm

BMC Body material code

H - Solid carbide

CHW Corner chamfer width

0.2 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

8.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

5/3/2013

DIN

ZYL00850105

F71 Number of corner designs

FamilyProducts

SC DRILL SLOT ENDMILL A

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

30 Degree

GAMP Rake angle axial

1 Degree

GRD2ND Standard designation of the grade 2nd application

HC-M30

GRD3RD Standard designation of the grade 3rd application

HC-M20

GRDMFG Grade manufacturers designation

KC633M

GRDPRIO Standard designation of the grade main application

HC-P30

ID Technical product number

2226764

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

KCH Corner chamfer angle

45 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0085

LOC-03 DCONMS Diameter

8.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00850105

LPR Protruding length

31 mm

LS Shank length

36 mm

Name Identifying order number

F3AH0850ADN30 KC633M

OAL Overall length

67 mm

STDNO Standard

DIN6528

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
