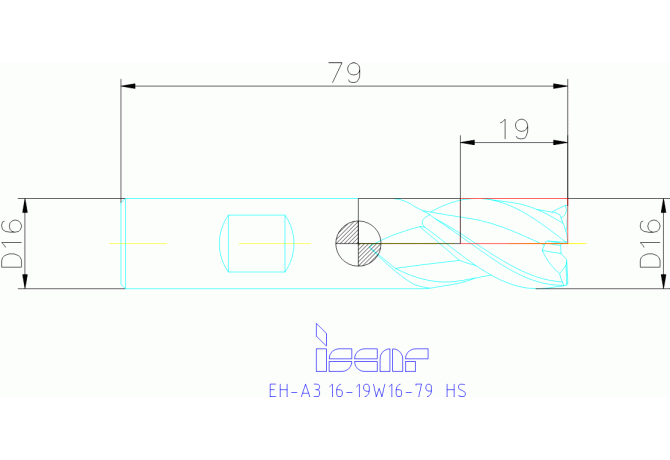

EH-A3 16-19W16-79 HS MPC

EH-A3 16-19W16-79 HS MPC EH-A3 16-19W16-79 HS MPC

EH-A3 16-19W16-79 HS MPC

Iscar
Артикул: 3121030
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
19 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
ZYL01601005
F71 Number of corner designs
1
FamilyProducts
EH-A3 16-19W16-79 HS, 3 Schneiden, 30° Drallwinkel
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
MPC
HAND Cutting direction
R - Right
ID Technical product number
3121030
Interface codes
J6 /
ISYC Subclass
303-02 - Centre cutting end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01601005
Name Identifying order number
EH-A3 16-19W16-79 HS MPC
OAL Overall length
79 mm
Working process
No working processes available
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
