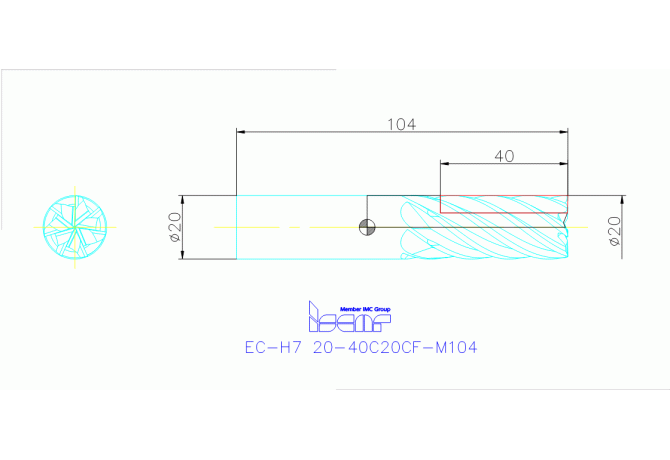

EC-H7 20-40C20CF-M104 IC902

EC-H7 20-40C20CF-M104 IC902 EC-H7 20-40C20CF-M104 IC902

EC-H7 20-40C20CF-M104 IC902

Iscar
Артикул: 5623379
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
40 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CRCLMFG Chip removal class mfg
P,M,K,S
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
8/17/2015
DIN
ZYL02000105
F71 Number of corner designs
1
FamilyProducts
7 Flute Endmills with Different Helix
FHA Flute helix angle
37 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
37 Degree
GRDMFG Grade manufacturers designation
IC902
HAND Cutting direction
R - Right
ID Technical product number
5623379
Interface codes
J6 /
ISYC Subclass
303-02 - Centre cutting end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02000105
Name Identifying order number
EC-H7 20-40C20CF-M104 IC902
OAL Overall length
104 mm
RMPX Ramping angle maximum
3 Degree
Working process
FEC - Square shoulder milling
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
