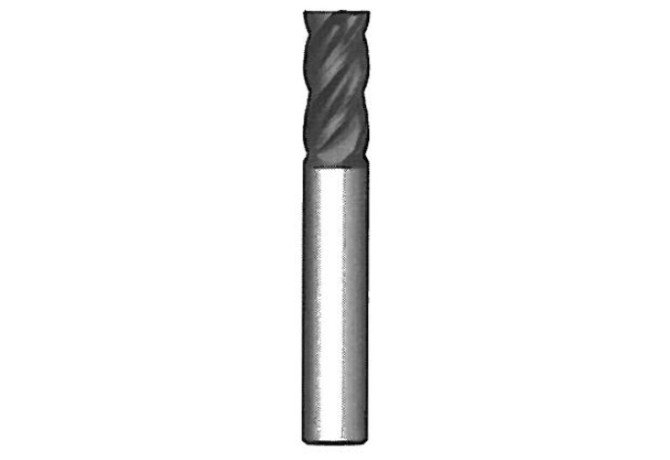

Главная Каталог продукции Toolunited 15 303-02 - Centre cutting end mill DPX.4.10.100.10.22 TF2K

DPX.4.10.100.10.22 TF2K

Артикул: DPX4101001022TF2K

В наличии

В корзину

Описание

Характеристики

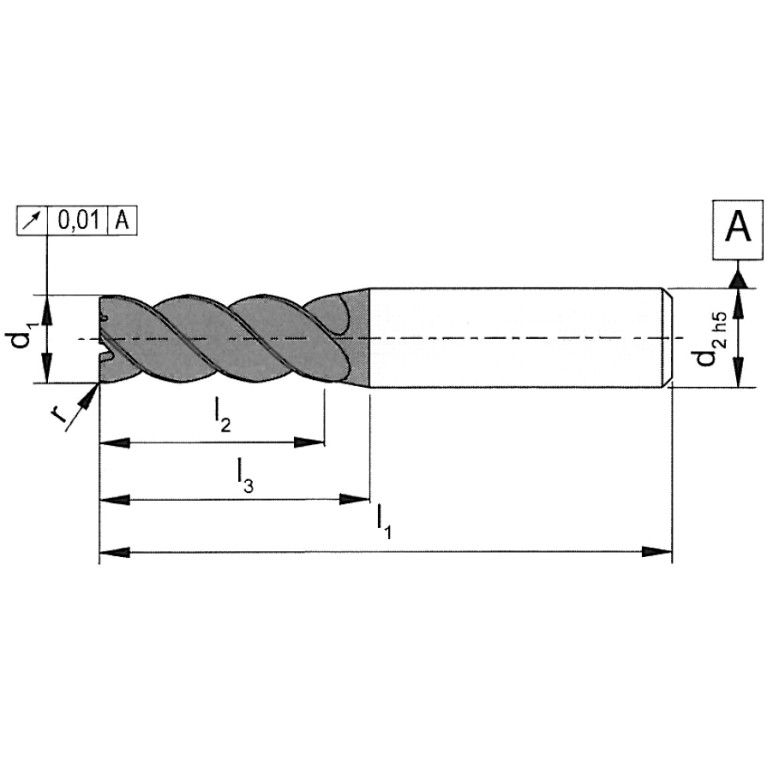

APMX Depth of cut maximum

22 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HORN - Paul Horn

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

10 mm

DCONMSLD Shank diameter lower limit

0 mm

DCONMSUD Shank diameter upper limit

-0.006 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/15/2014

DIN

ZYL01001005

F71 Number of corner designs

FamilyProducts

DPX ROUGHING ENDMILL, 4-fluted, 35°-38°" helix

FHA Flute helix angle

35 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

38 Degree

GRDMFG Grade manufacturers designation

TF2K

HAND Cutting direction

R - Right

ID Technical product number

DPX4101001022TF2K

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$05

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01001005

Materials

P,M,K,N,S

Name Identifying order number

DPX.4.10.100.10.22 TF2K

OAL Overall length

72 mm

RE Corner radius

1 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
