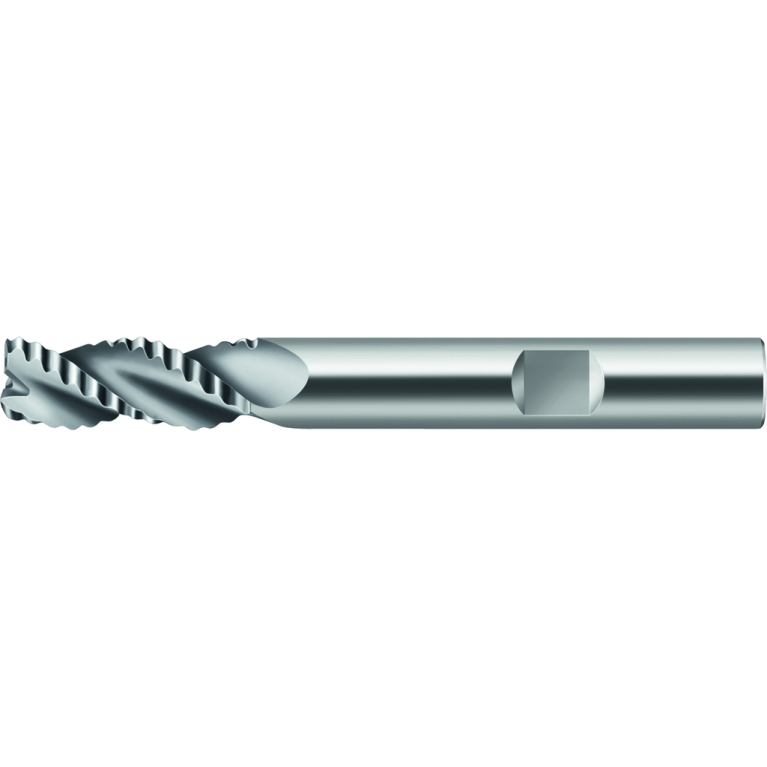

Главная Каталог продукции Toolunited 15 303-02 - Centre cutting end mill AH618911-3/4

AH618911-3/4

Артикул: 5543238

В наличии

В корзину

Описание

Характеристики

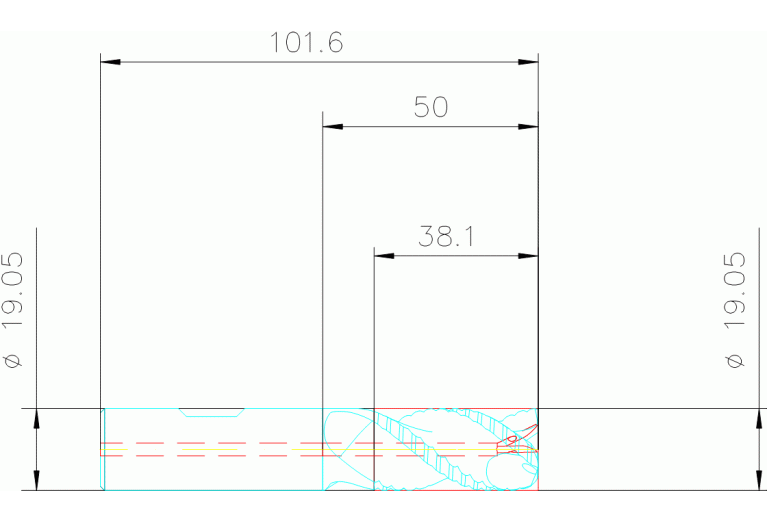

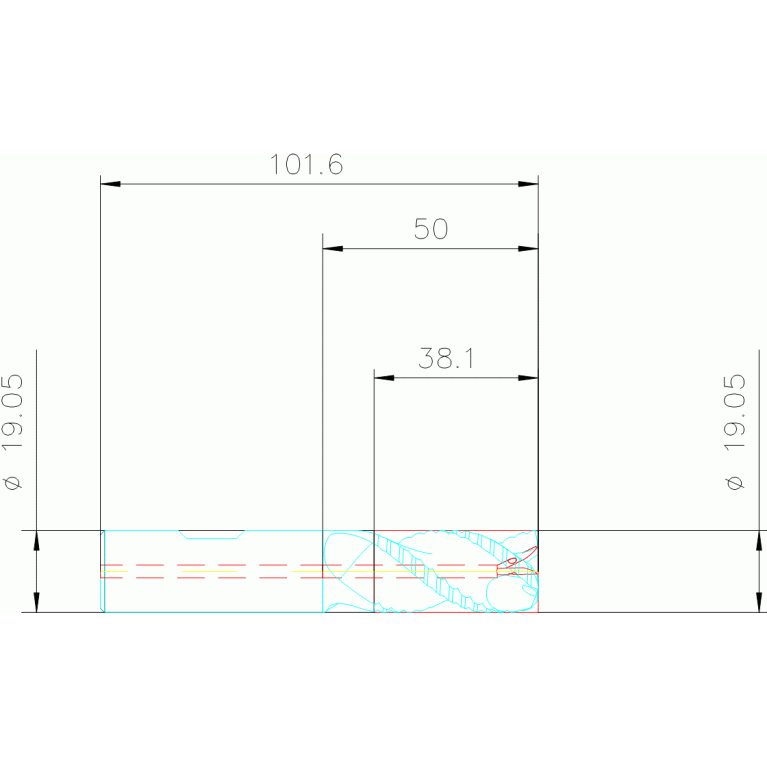

APMX Depth of cut maximum

38.1 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

2 - With Coolant exit, radial

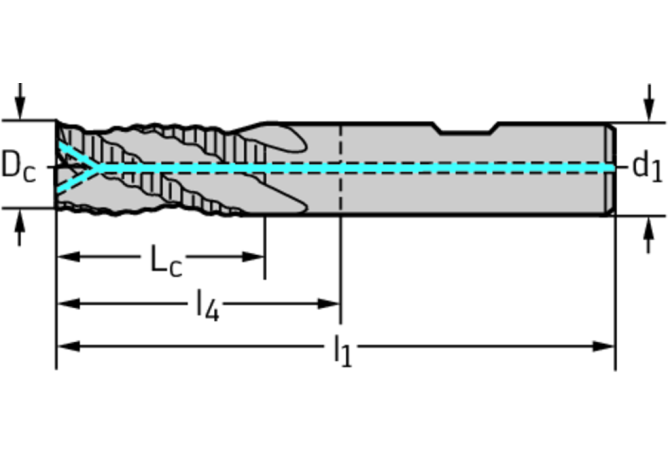

DC Cutting diameter

19.05 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL07501035

F71 Number of corner designs

FamilyProducts

Solid carbide shoulder/slot milling cutter AH618911

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

10.5 Degree

GAMP Rake angle axial

13.5 Degree

GRDMFG Grade manufacturers designation

UNBESCHICH

HAND Cutting direction

R - Right

ID Technical product number

5543238

Interface codes

J6 / J61

ISO

ZYL10R7500h$06

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

75.803 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

3 Inch with coolant

LOC-03 CZCMS Size code

0750

LOC-03 DCONMS Diameter

19.05 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL10R7500h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL07501035

LPR Protruding length

50 mm

Name Identifying order number

AH618911-3/4

OAL Overall length

101.6 mm

RMPX Ramping angle maximum

20 Degree

RPMX Rotational speed maximum

80000 1/min

STDLET Standard letter to the standard number

STDNO Standard

STANDARD

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.316 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
