Главная Каталог продукции Toolunited 15 303-02 - Centre cutting end mill ABDE2000A3ARA K600

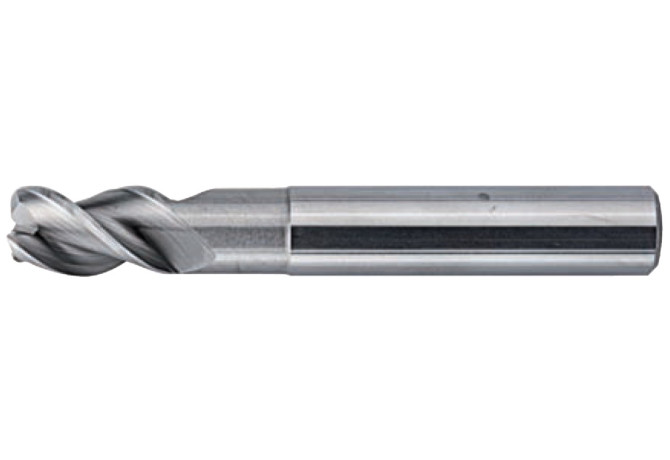

ABDE2000A3ARA K600

Артикул: 3637425

В наличии

В корзину

Описание

Характеристики

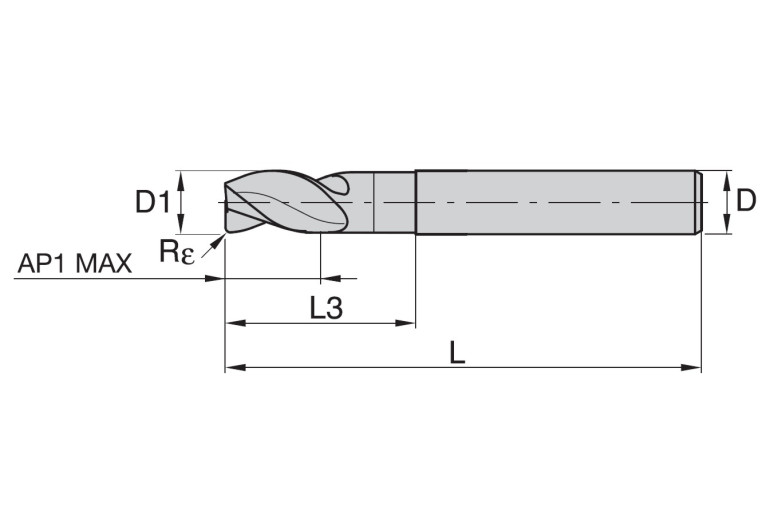

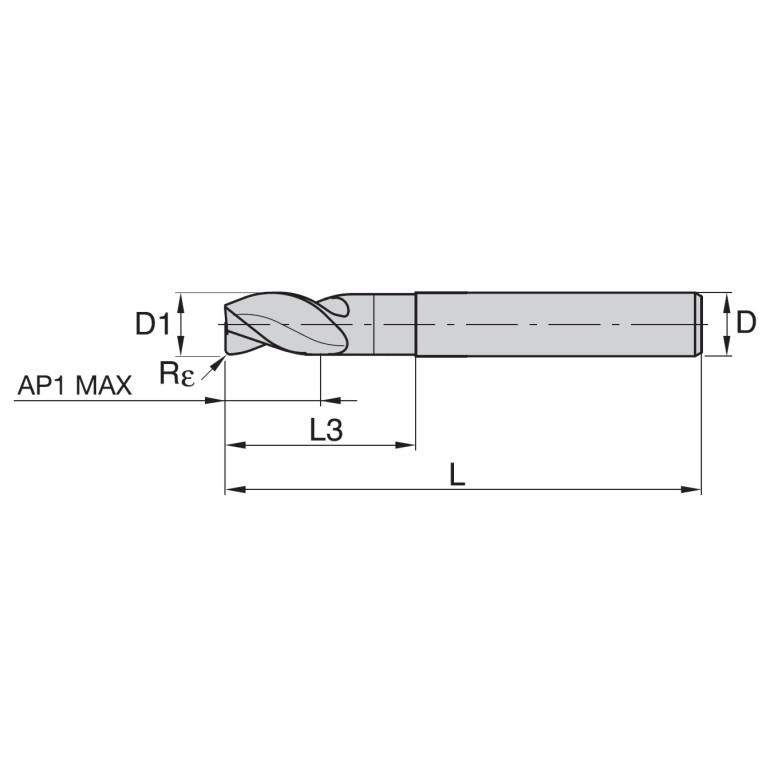

APMX Depth of cut maximum

30 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20 mm

DCONMSLD Shank diameter lower limit

0 mm

DCONMSUD Shank diameter upper limit

-0.013 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

11/1/2008

DIN

ZYL02000105

F71 Number of corner designs

FamilyProducts

ABDE - MaxiMet 3-Flute with Ext. Neck for Aluminum

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

38 Degree

GAMP Rake angle axial

0 Degree

GRDMFG Grade manufacturers designation

K600

HAND Cutting direction

R - Right

ID Technical product number

3637425

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LH Head length

60 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02000105

LPR Protruding length

60 mm

MILTTY Mill tool type ISO

E - Disc mill - one side cutting

Name Identifying order number

ABDE2000A3ARA K600

OAL Overall length

126 mm

RE Corner radius

0.2 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
