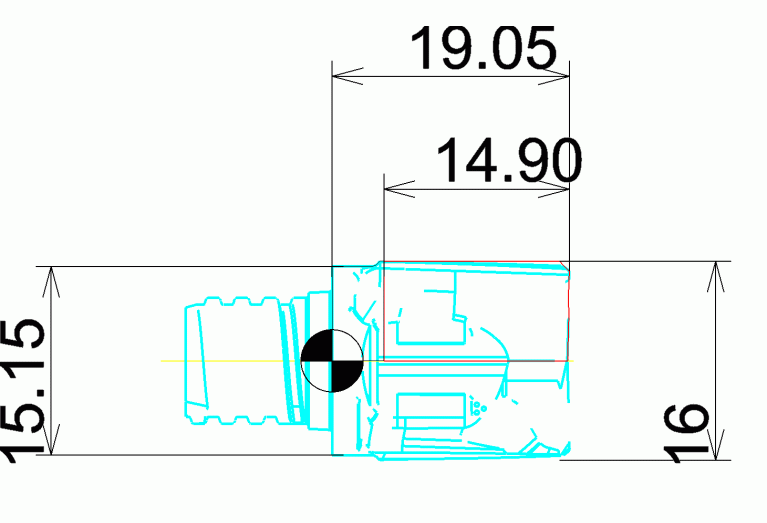

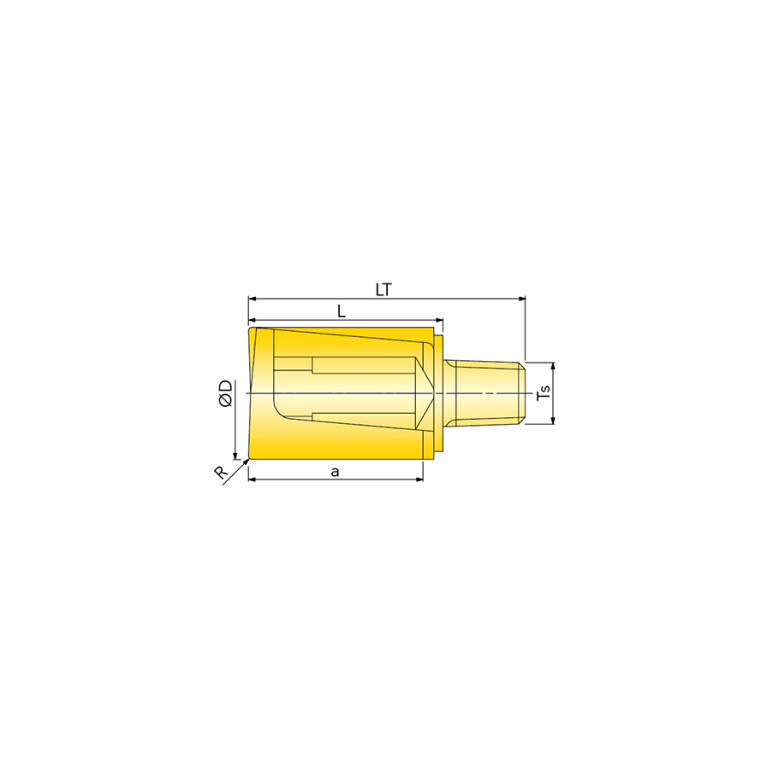

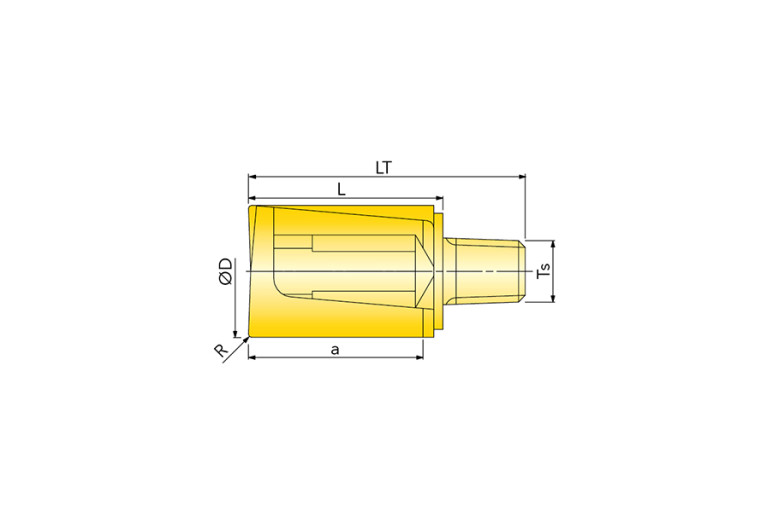

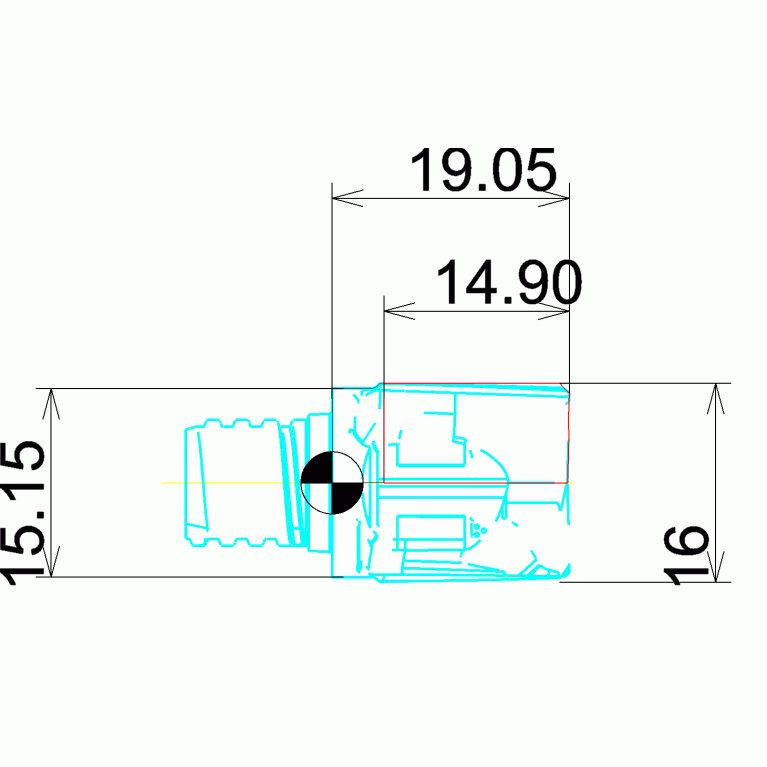

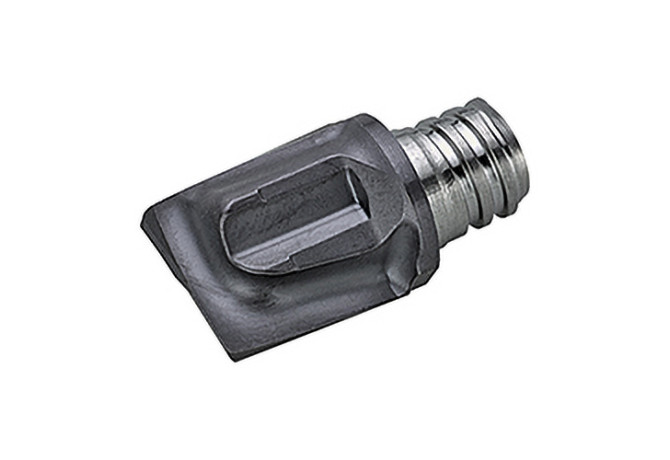

Главная Каталог продукции Toolunited 15 303-02 - Centre cutting end mill 45D16015TRRA08 IN2005

45D16015TRRA08 IN2005

Артикул: 5840413

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

15 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAIN

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LA - Soon discontinued

DIN

SAI01000105

F71 Number of corner designs

FamilyProducts

Slot drill with corner radius

FHA Flute helix angle

10 Degree

FHH Flute helix hand

R - Hand of helix right

GRD2ND Standard designation of the grade 2nd application

HC-K40

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

HC-M35

HAND Cutting direction

R - Right

ID Technical product number

5840413

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01000105

LPR Protruding length

19 mm

Name Identifying order number

45D16015TRRA08 IN2005

OAL Overall length

30.8 mm

RE Corner radius

0.8 mm

THSZMS Connection thread nominal size machine side

T10

Working process

No working processes available

WT Weight of item

0.037 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
