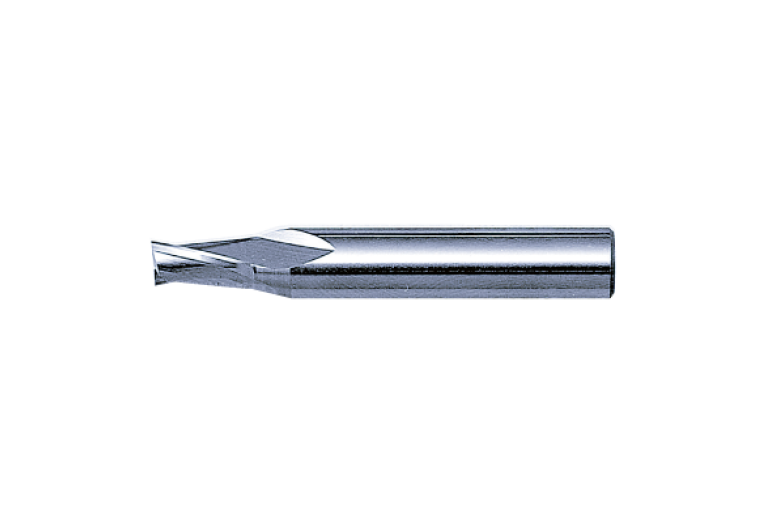

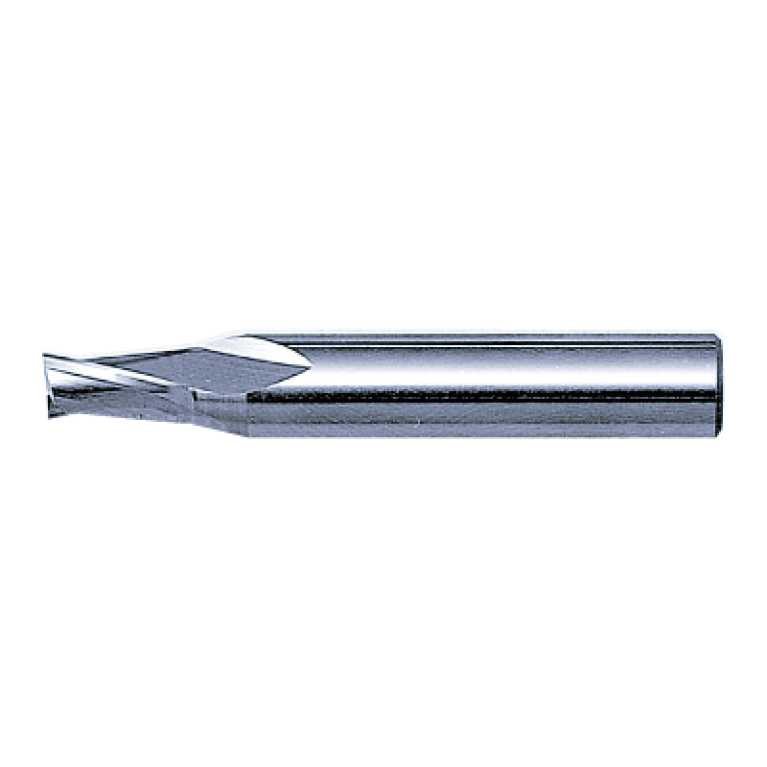

Главная Каталог продукции Toolunited 15 303-02 - Centre cutting end mill 2MKNND0700

2MKNND0700

Артикул: 10223529

В наличии

В корзину

Описание

Характеристики

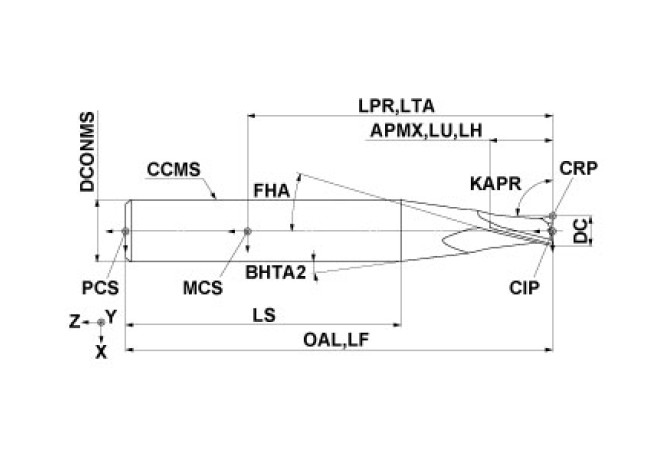

APMX Depth of cut maximum

10 mm

BMC Body material code

L - Light alloy

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

7 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2024

DIN

ZYL01000105

FamilyProducts

HSS End mill, Short cut length, 2 flute, For key ways

FHA Flute helix angle

15 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

10223529

Interface codes

J6 / J61

ISO

ZYL01G1000$$$$

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

65 mm

LH Head length

10 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 ISO

ZYL01G1000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000105

LPR Protruding length

35 mm

LU Usable length

10 mm

Name Identifying order number

2MKNND0700

OAL Overall length

65 mm

Working process

FPL - Face milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
