Главная Каталог продукции Toolunited 15 303-02 - Centre cutting end mill 2MKND1500

2MKND1500

Артикул: 10296592

В наличии

В корзину

Описание

Характеристики

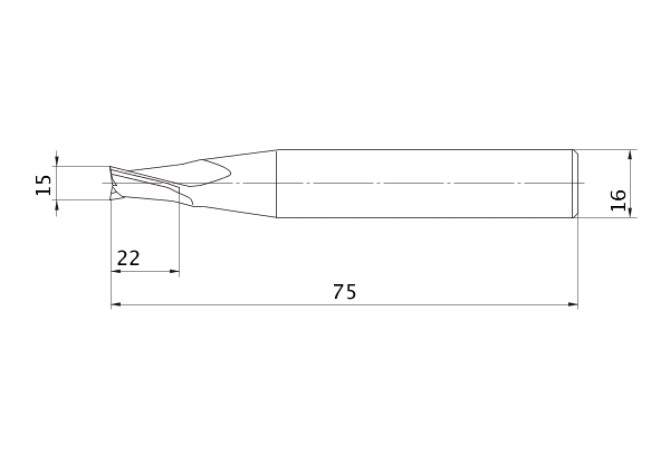

APMX Depth of cut maximum

22 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

15 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL01600105

F71 Number of corner designs

FamilyProducts

End mill, short cut length, 2 flute, for key ways

FHA Flute helix angle

15 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

10296592

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

75 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600105

Name Identifying order number

2MKND1500

OAL Overall length

75 mm

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
