Главная Каталог продукции Toolunited 15 305-12 - Assembled single point bridge tool for external operations M05 90300

M05 90300

Артикул: M05 90300

В наличии

В корзину

Описание

Характеристики

BLDEV Balancing device

CEATC Tool cutting edge angle type code

E - Front lead angle

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KOG - Komet Group

CXSC Coolant exit style code

0 - Without coolant exit

DCINN Cutting diameter internal minimum

5 mm

DCINX Cutting diameter internal maximum

70 mm

DCIPSN Presetting cutting diameter internal smaller

5 mm

DCIPSX Presetting cutting diameter internal greater

70 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/3/2016

DIN

ABS01600105

DIN CSW1

66743

FamilyProducts

Brücke Ø 5-70

HAND Cutting direction

R - Right

HSUP Support height

58 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

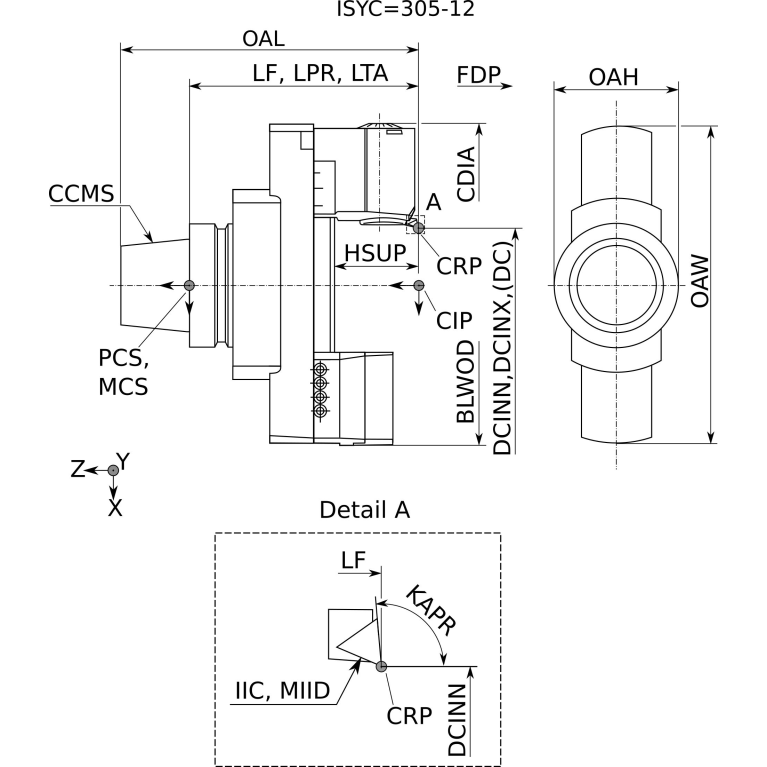

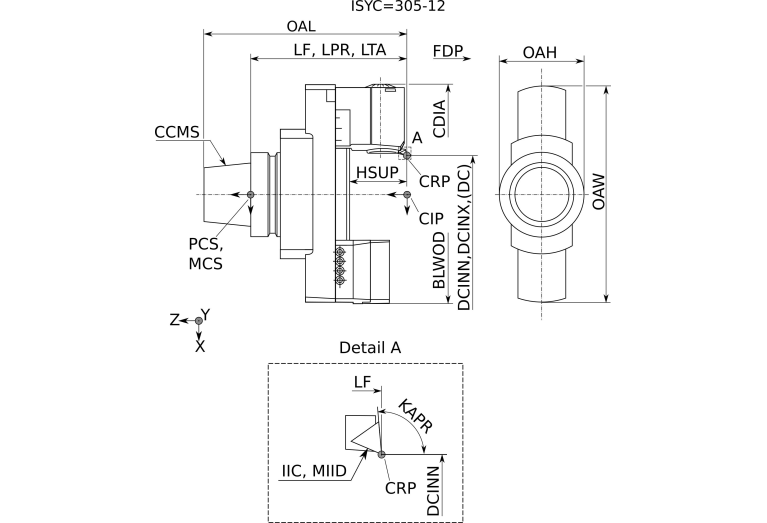

305-12 - Assembled single point bridge tool for external operations

KAPR Tool cutting edge angle

91 Degree

LF Functional length

75.5 mm

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

66743

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ABS KOMET ABS connection

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ABS01600105

LPR Protruding length

75.5 mm

Name Identifying order number

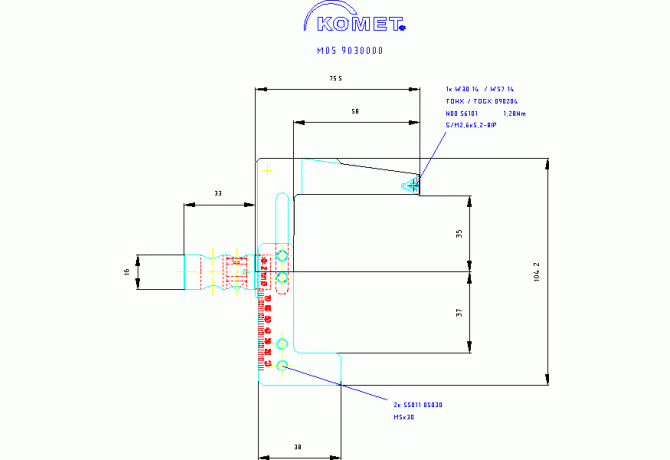

M05 90300

OAL Overall length

108.5 mm

Working process

No working processes available

WT Weight of item

0.377 kg
