208170 1
208170 1
Артикул:
208170 1
В наличии
Характеристики
APMX Depth of cut maximum
4 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiAlN
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit

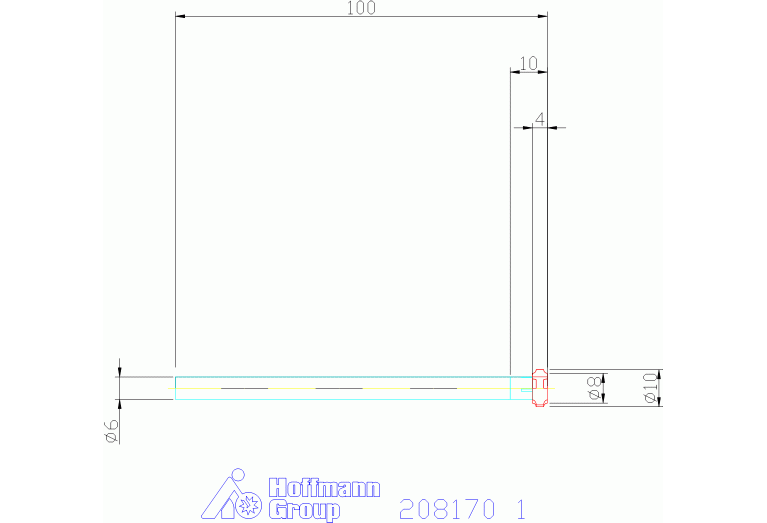

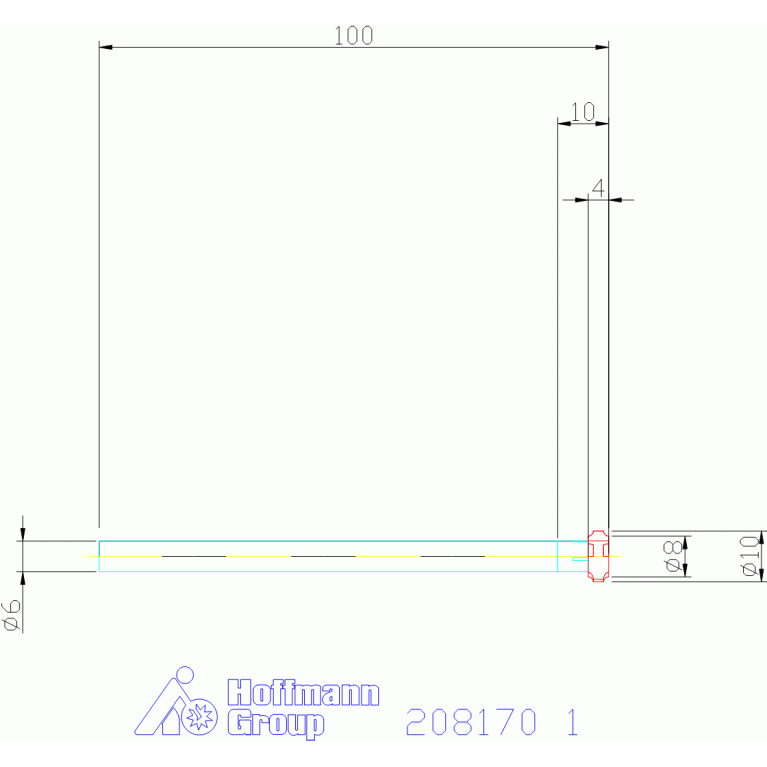

DC Cutting diameter
10 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
8 mm
Delivery state valid from
1/11/2017
DIN
ZYL00600105
DN Neck diameter
6 mm
FamilyProducts

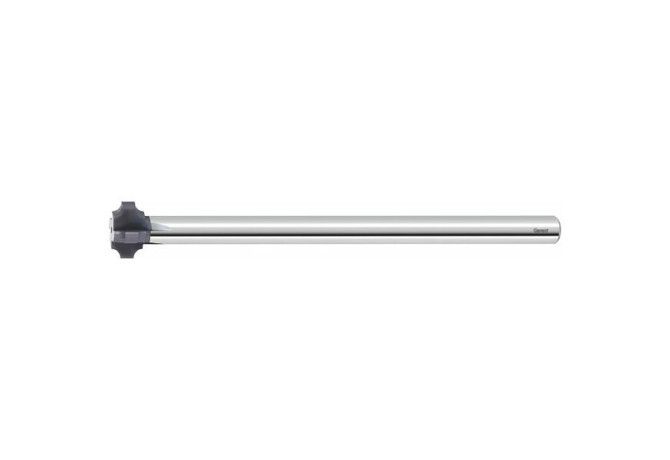

GARANT Solid carbide front / back corner rounding cutter
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
VHM TiAlN
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
303-08 - Rounded profile end mill, concave
LH Head length
4 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00600105
LPR Protruding length
10 mm
Name Identifying order number
208170 1
OAL Overall length
100 mm
Working process
No working processes available
WT Weight of item
0.041 kg
ZEFP Peripheral effective cutting edge count
4
