208038 25
208038 25
Артикул:
208038 25
В наличии
Характеристики

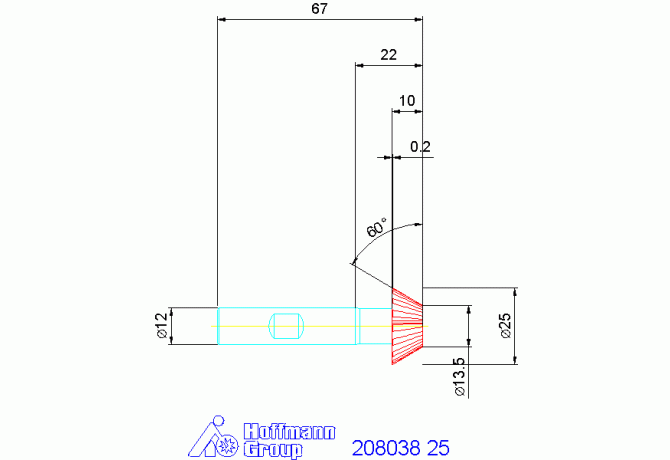

APMX Depth of cut maximum
10 mm
BMC Body material code
H - Solid carbide
CHW Corner chamfer width
0.2 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
13.5 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
25 mm
Delivery state valid from
1/11/2017
DIN
ZYL01200105
DN Neck diameter
11.5 mm
F71 Number of corner designs
1
FamilyProducts

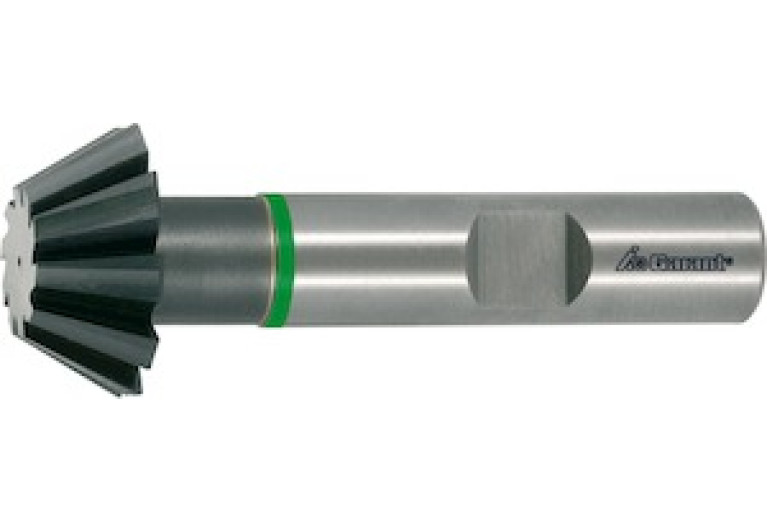

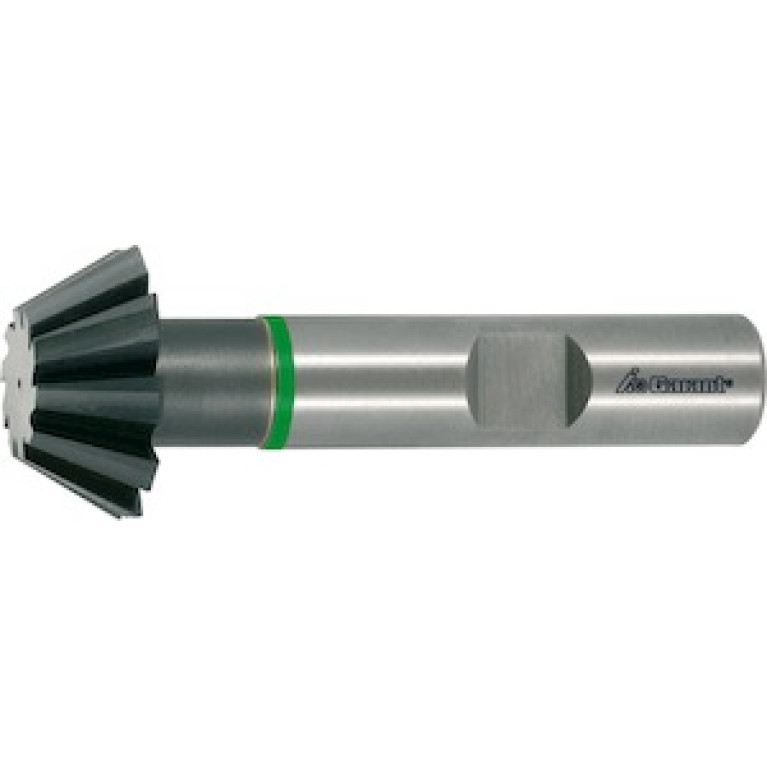

GARANT Solid carbide dovetail milling cutter Form D 60°
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
VHM
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
303-03 - Angular end mill (V-groove)
KAPR Tool cutting edge angle
60 Degree
KCH Corner chamfer angle
45 Degree
LH Head length
20.5 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01200105
LPR Protruding length
22 mm
Name Identifying order number
208038 25
OAL Overall length
67 mm
RE Corner radius
1 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FFO - Die milling
WT Weight of item
0.135 kg
ZEFP Peripheral effective cutting edge count
8
