Главная Каталог продукции Toolunited 14 303-05 - T-slot end mill 194050 40X18

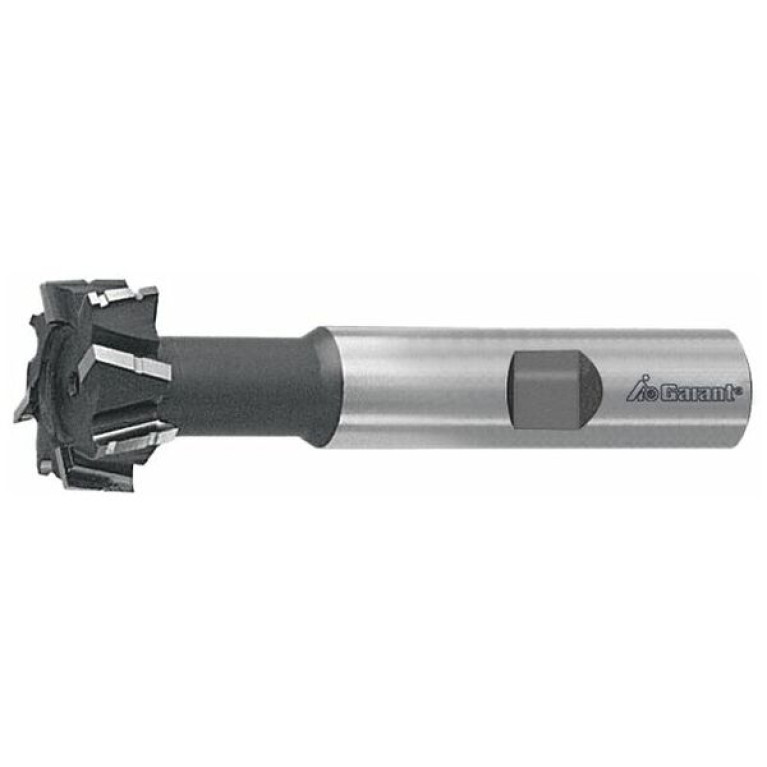

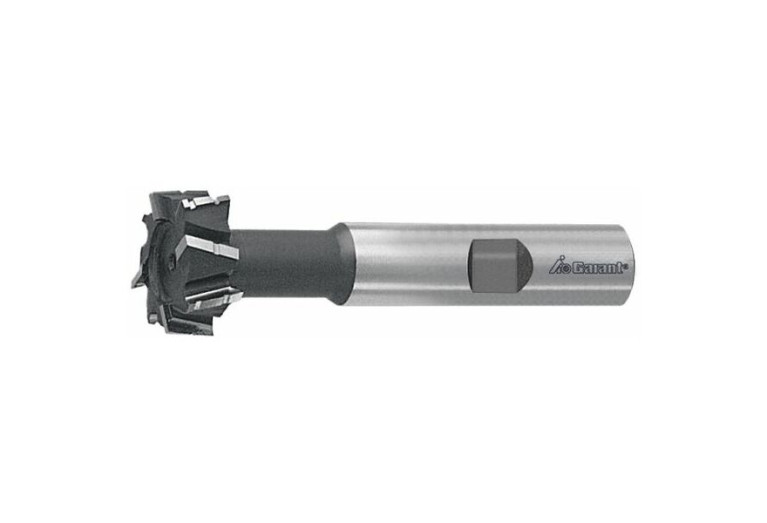

194050 40X18

Артикул: 194050 40X18

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

18 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

40 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL02501005

DN Neck diameter

19 mm

FamilyProducts

GARANT T-slot semi-roughing cutter

FHH Flute helix hand

X - Cross-cut

GRDMFG Grade manufacturers designation

HSS-Co5

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-05 - T-slot end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02501005

LPR Protruding length

52 mm

MILTTY Mill tool type ISO

F - T-slot end mills

Name Identifying order number

194050 40X18

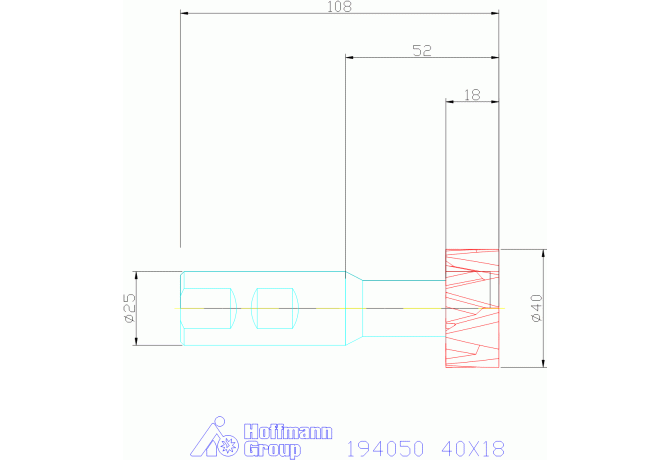

OAL Overall length

108 mm

Working process

No working processes available

WT Weight of item

0.4 kg

ZEFP Peripheral effective cutting edge count
