Главная Каталог продукции Toolunited 14 303-05 - T-slot end mill 194050 18X8

194050 18X8

Артикул: 194050 18X8

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

8 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

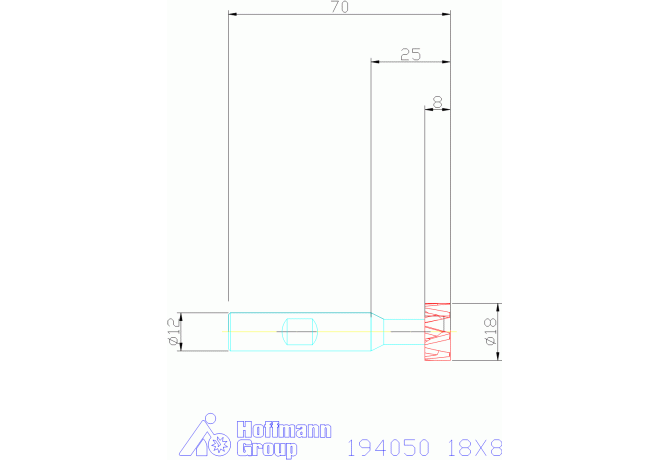

DC Cutting diameter

18 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL01201005

DN Neck diameter

8 mm

FamilyProducts

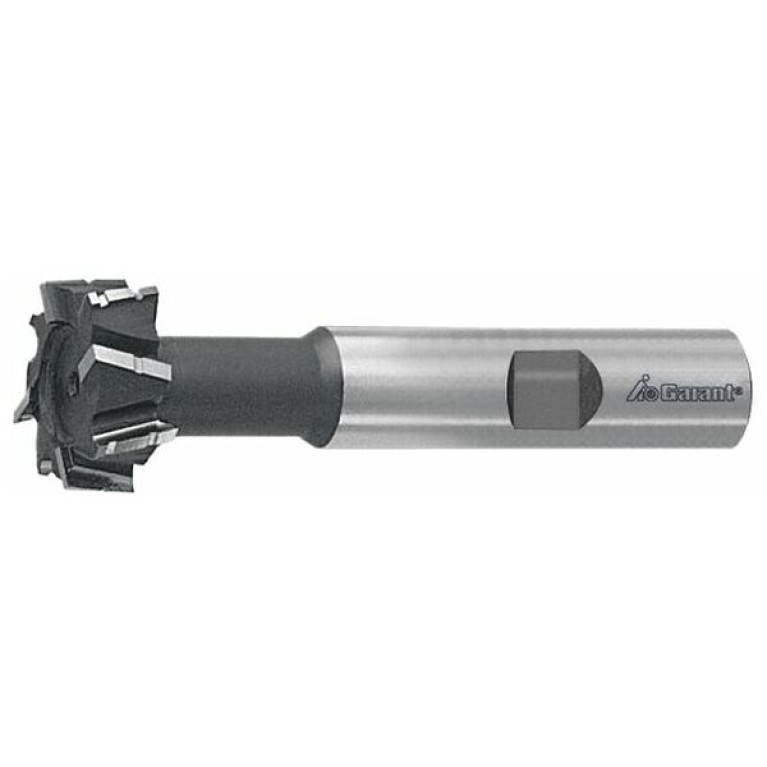

GARANT T-slot semi-roughing cutter

FHH Flute helix hand

X - Cross-cut

GRDMFG Grade manufacturers designation

HSS-Co5

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-05 - T-slot end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01201005

LPR Protruding length

25 mm

MILTTY Mill tool type ISO

F - T-slot end mills

Name Identifying order number

194050 18X8

OAL Overall length

70 mm

Working process

No working processes available

WT Weight of item

0.05 kg

ZEFP Peripheral effective cutting edge count
