194010 38,5X8
194010 38,5X8
Артикул:
194010 38,5X8
В наличии
Характеристики
APMX Depth of cut maximum
8 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
38.5 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL01201005

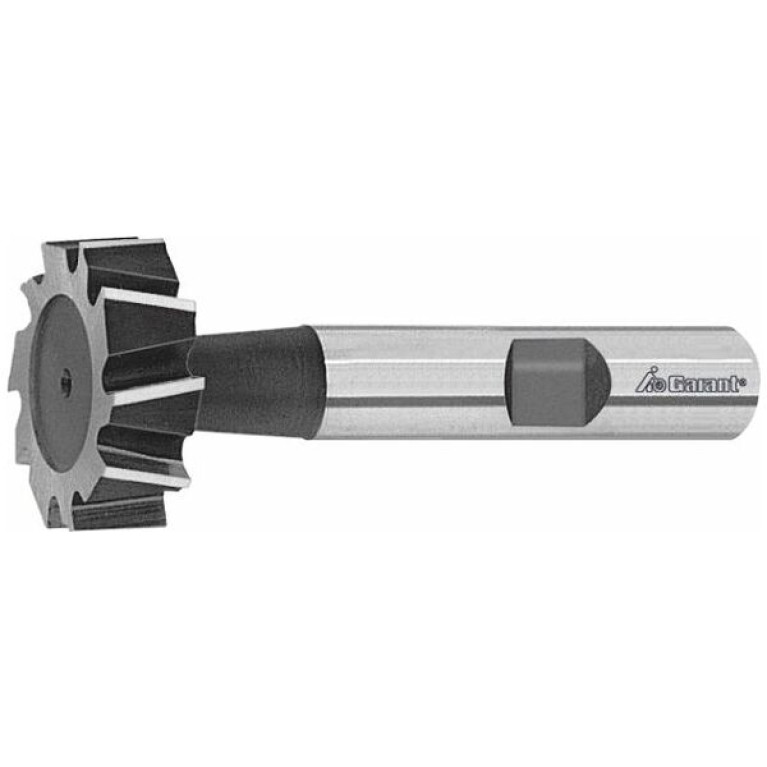

FamilyProducts
GARANT Woodruff keyseat cutter
FHH Flute helix hand
X - Cross-cut
GRDMFG Grade manufacturers designation
HSS-Co5
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
303-05 - T-slot end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01201005
LPR Protruding length
26 mm
MILTTY Mill tool type ISO
F - T-slot end mills
Name Identifying order number
194010 38,5X8

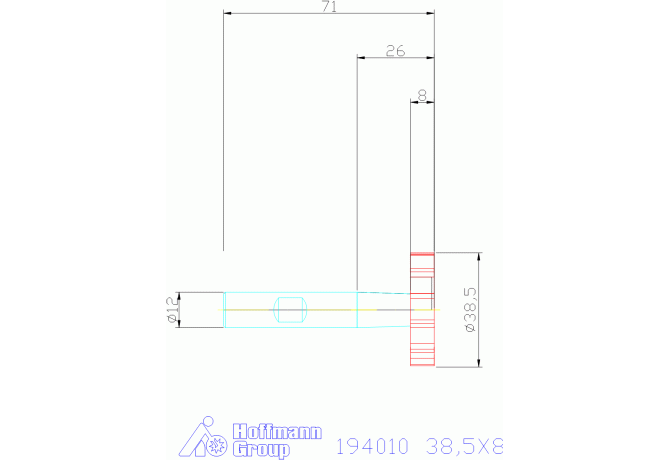

OAL Overall length
71 mm
Working process
No working processes available
WT Weight of item
0.105 kg
ZEFP Peripheral effective cutting edge count
12
