Главная Каталог продукции Toolunited 14 303-05 - T-slot end mill 194010 10,5X3

194010 10,5X3

Артикул: 194010 10,5X3

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

3 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

10.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL00601005

FamilyProducts

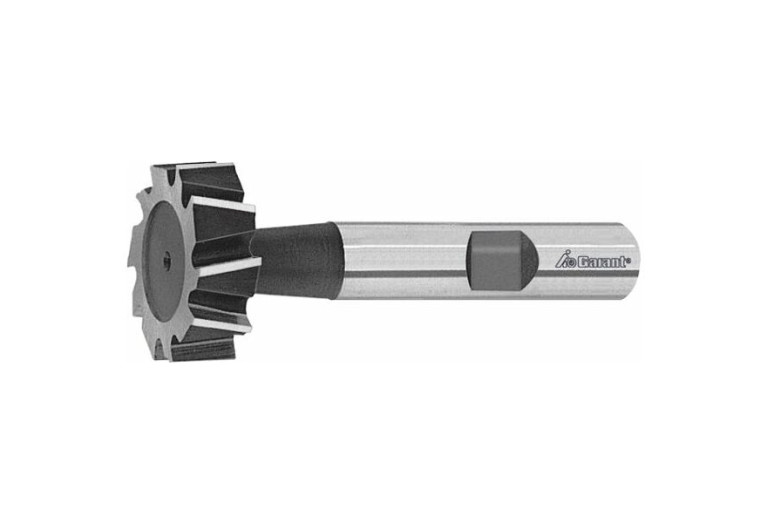

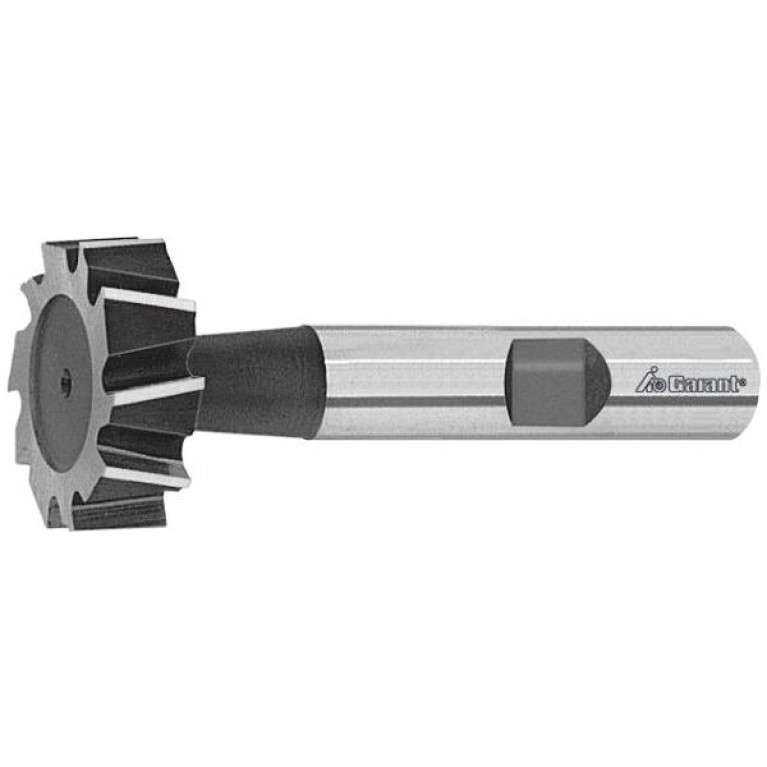

GARANT Woodruff keyseat cutter

FHH Flute helix hand

X - Cross-cut

GRDMFG Grade manufacturers designation

HSS-Co5

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-05 - T-slot end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00601005

LPR Protruding length

14 mm

MILTTY Mill tool type ISO

F - T-slot end mills

Name Identifying order number

194010 10,5X3

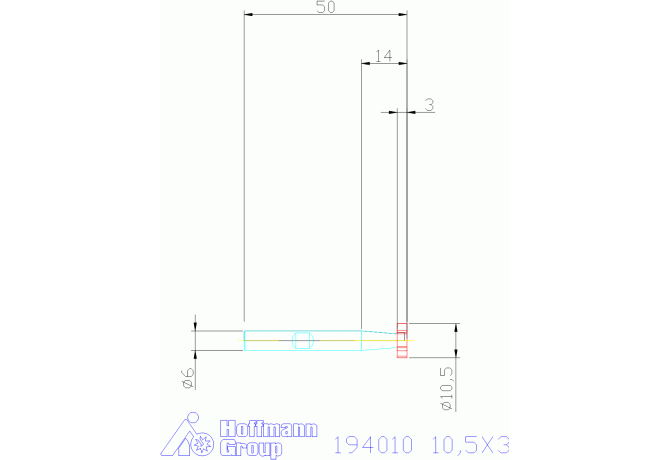

OAL Overall length

50 mm

Working process

No working processes available

WT Weight of item

0.015 kg

ZEFP Peripheral effective cutting edge count
