Главная Каталог продукции Toolunited 14 303-09 - Thread end mill 139660 M12

139660 M12

Артикул: 139660 M12

В наличии

В корзину

Описание

Характеристики

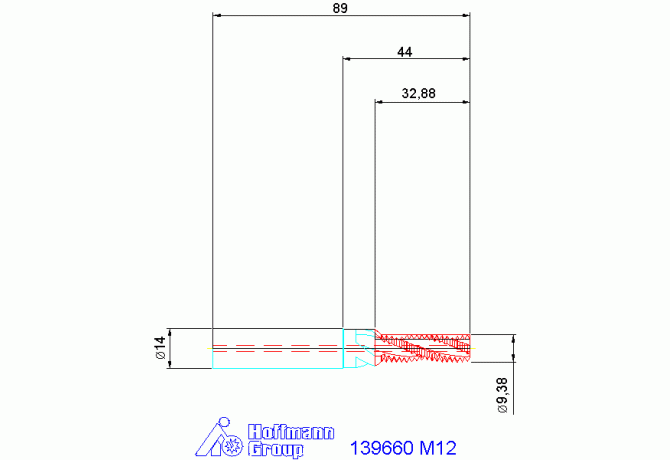

APMX Depth of cut maximum

32.45 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

TiAlN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

9.377 mm

Delivery state valid from

1/11/2017

DIN

ZYL01400115

DN Neck diameter

13.5 mm

FamilyProducts

GARANT Plain shank thread mill 2.5xD

FHA Flute helix angle

27.75 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

VHM TiAlN

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-09 - Thread end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0140

LOC-03 DCONMS Diameter

14 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01400115

LPR Protruding length

44 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

139660 M12

OAL Overall length

89 mm

TCDCONMS ISO-tolerance class shank diameter

TD Thread diameter

12 mm

THFT Thread form type

TP Thread pitch

1.75 mm

TPI Threads per inch

14.51 1/in

Working process

FSC - Thread milling

WT Weight of item

0.131 kg

ZEFP Peripheral effective cutting edge count
