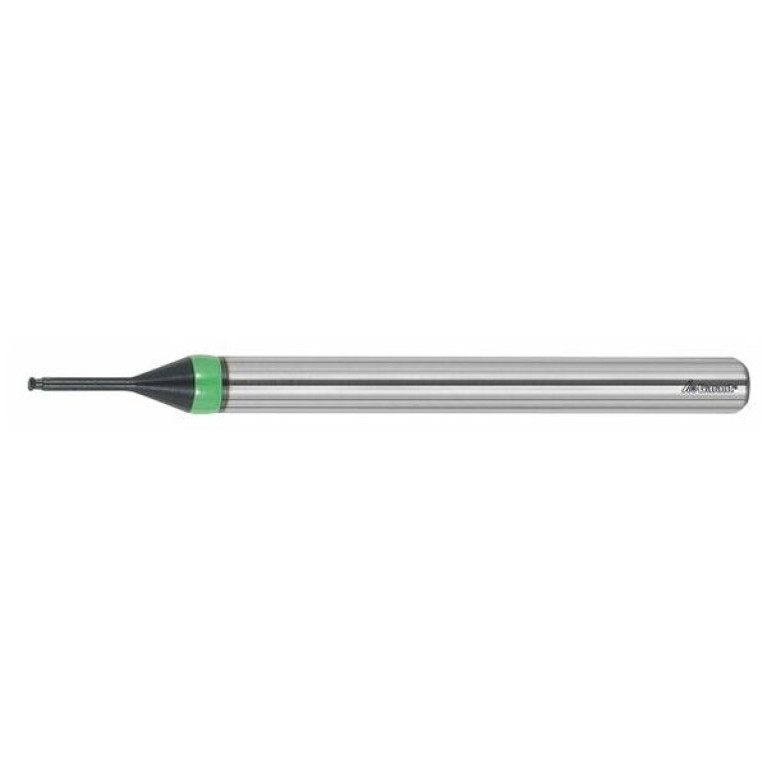

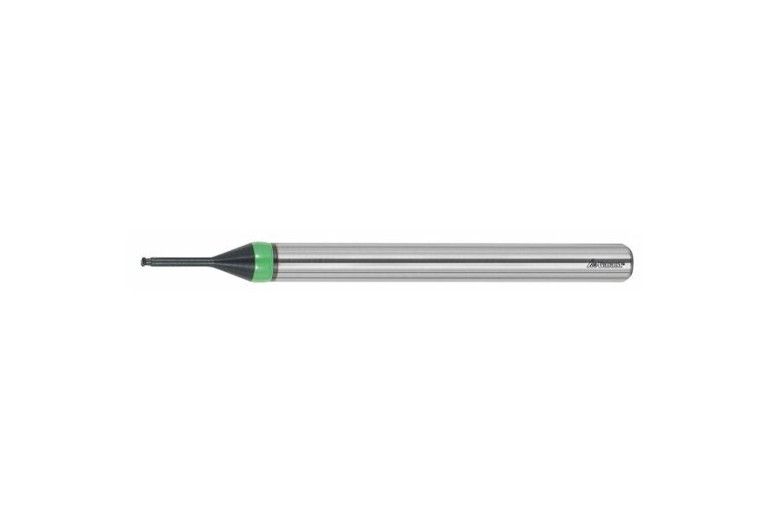

Главная Каталог продукции Toolunited 14 303-09 - Thread end mill 139615 M2

139615 M2

Артикул: 139615 M2

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

1.52 mm

Delivery state valid from

1/11/2017

DIN

ZYL00300105

FamilyProducts

GARANT Single tooth thread mill 3xD

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

VHM TiAlN

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-09 - Thread end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0030

LOC-03 DCONMS Diameter

3 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00300105

LS Shank length

28 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

139615 M2

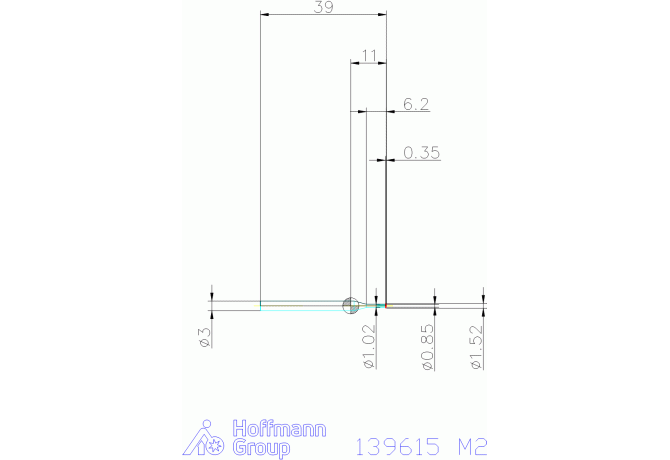

OAL Overall length

39 mm

TCDCONMS ISO-tolerance class shank diameter

TD Thread diameter

2 mm

THFT Thread form type

TP Thread pitch

0.35 mm

Working process

FSC - Thread milling

WT Weight of item

0.007 kg

ZEFP Peripheral effective cutting edge count
