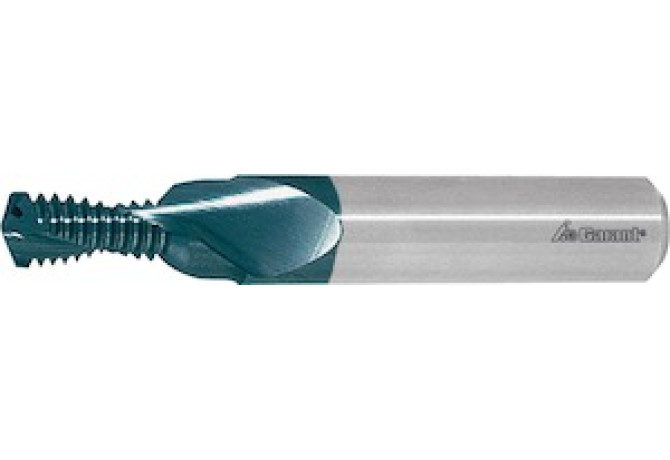

Главная Каталог продукции Toolunited 14 303-11 - Thread end mill with drilling part 139510 M8

139510 M8

139510 M8 139510 M8 139510 M8

139510 M8

Hoffmann Group
Артикул: 139510 M8
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
14.77 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCD Drilling diameter
6.75 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
6.45 mm
Delivery state valid from
1/11/2017
DIN
ZYL01000115
DN Neck diameter
9 mm
FamilyProducts
GARANT Thread milling cutter 1.5xD
FHA Flute helix angle
27.9 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
VHM TiAlN
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
303-11 - Thread end mill with drilling part
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01000115

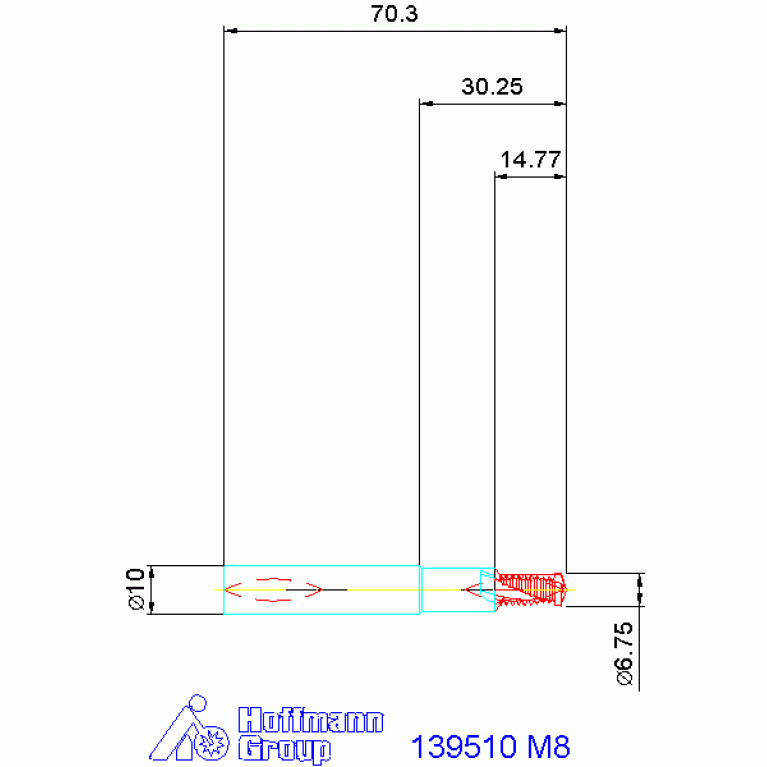

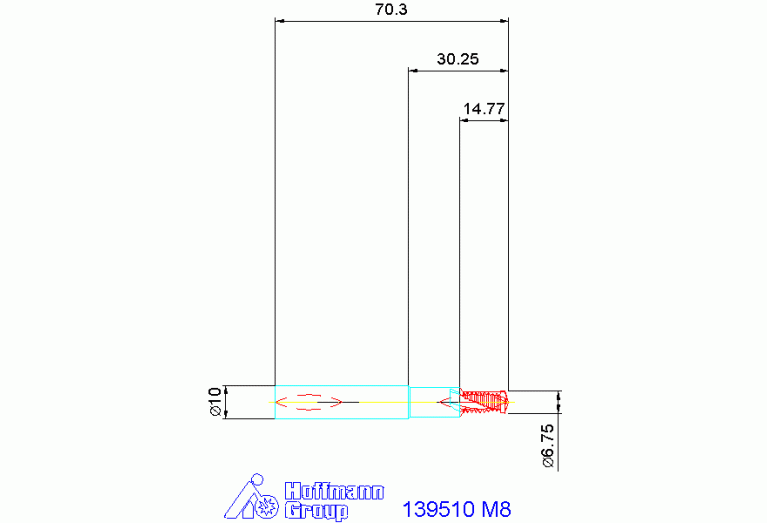

LPR Protruding length
30.25 mm
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
139510 M8
OAL Overall length
70.3 mm
PRFA Profile included angle
140 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
TD Thread diameter
8 mm
THFT Thread form type
M
TP Thread pitch
1.25 mm
TPI Threads per inch
20.32 1/in
Working process
No working processes available
WT Weight of item
0.055 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
