Главная Каталог продукции Toolunited 14 304-04 - Slotting cutter 217462 2,15

217462 2,15

Артикул: 217462 2,15

В наличии

В корзину

Описание

Характеристики

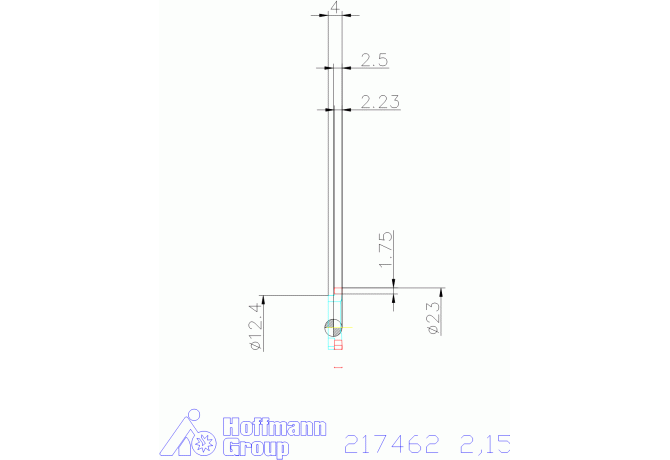

CDX Cutting depth maximum

3.45 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CWN Cutting width minimum

4 mm

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

23 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DHUB Hub diameter

19.5 mm

DIN

HOG-CPM1

FamilyProducts

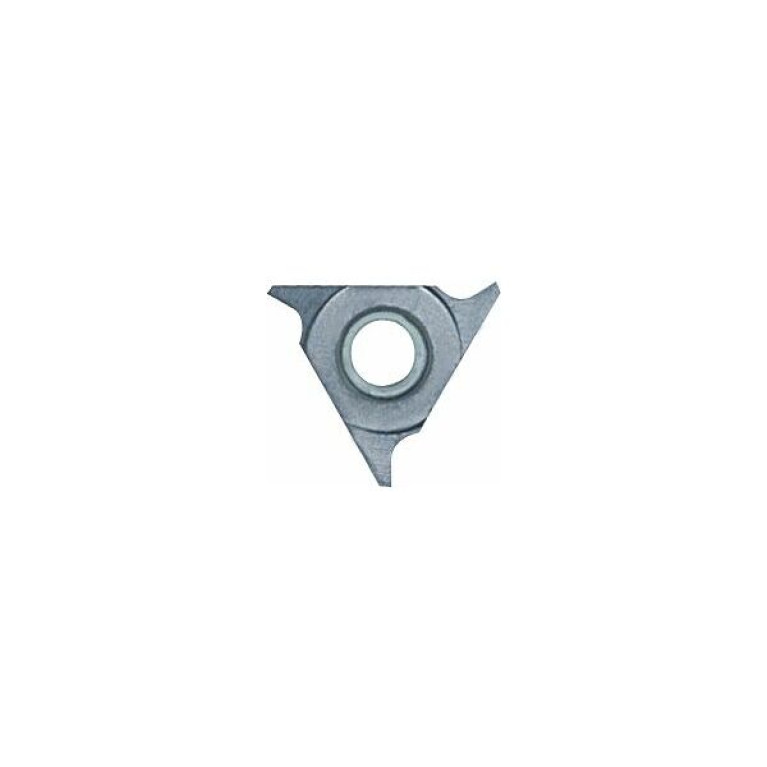

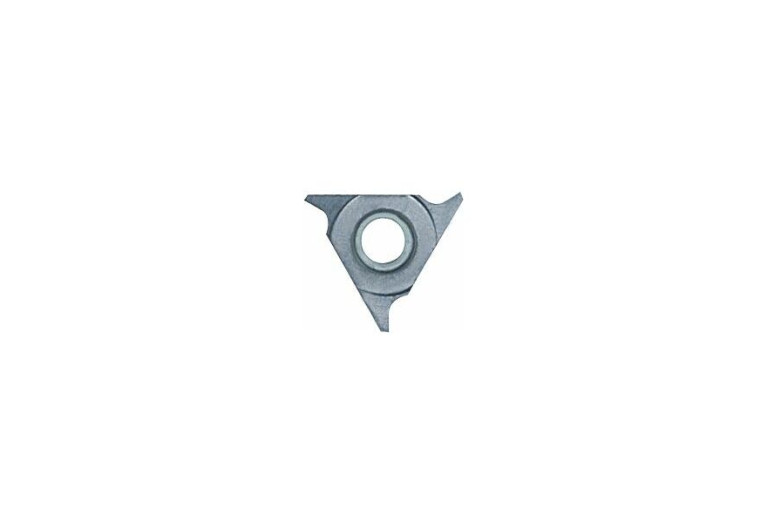

Milling inserts for retaining ring grooves, without chamfer

GRDMFG Grade manufacturers designation

HB7720

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

304-04 - Slotting cutter

LOC-03 CZCMS Connection size code

0124

LOC-03 DCONMS Diameter

12.4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HOG-CPM1

Name Identifying order number

217462 2,15

OAW Overall width

4 mm

Working process

No working processes available

WT Weight of item

0.008 kg

ZEFP Peripheral effective cutting edge count
