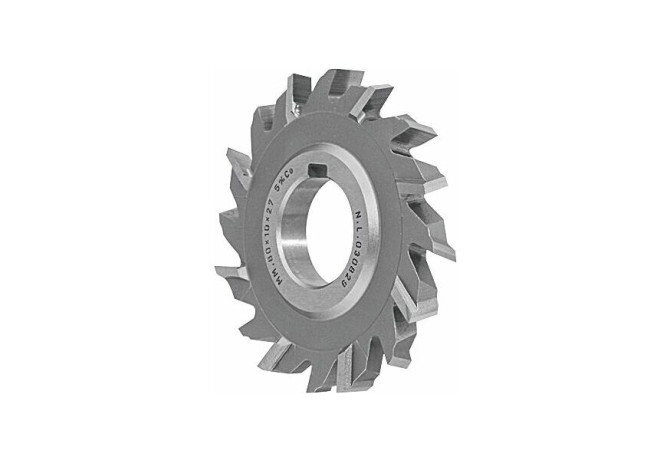

Главная Каталог продукции Toolunited 14 304-04 - Slotting cutter 185820 125X4

185820 125X4

Артикул: 185820 125X4

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

8 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CWN Cutting width minimum

4 mm

CXSC Coolant exit style code

0 - Without coolant exit

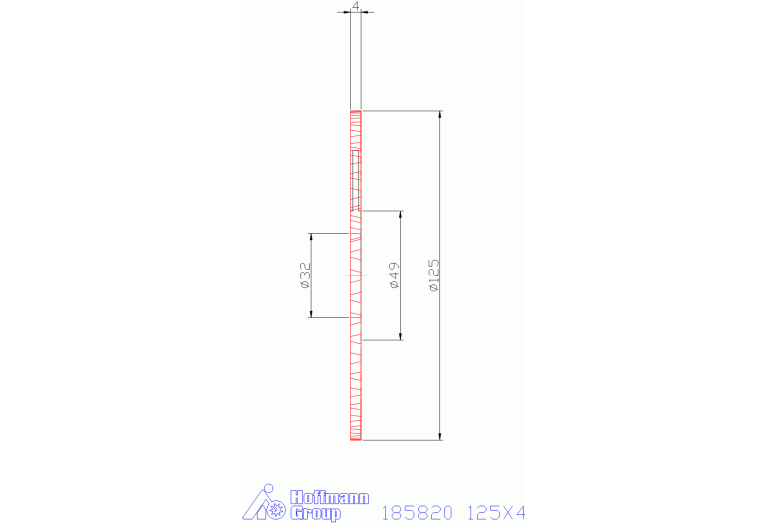

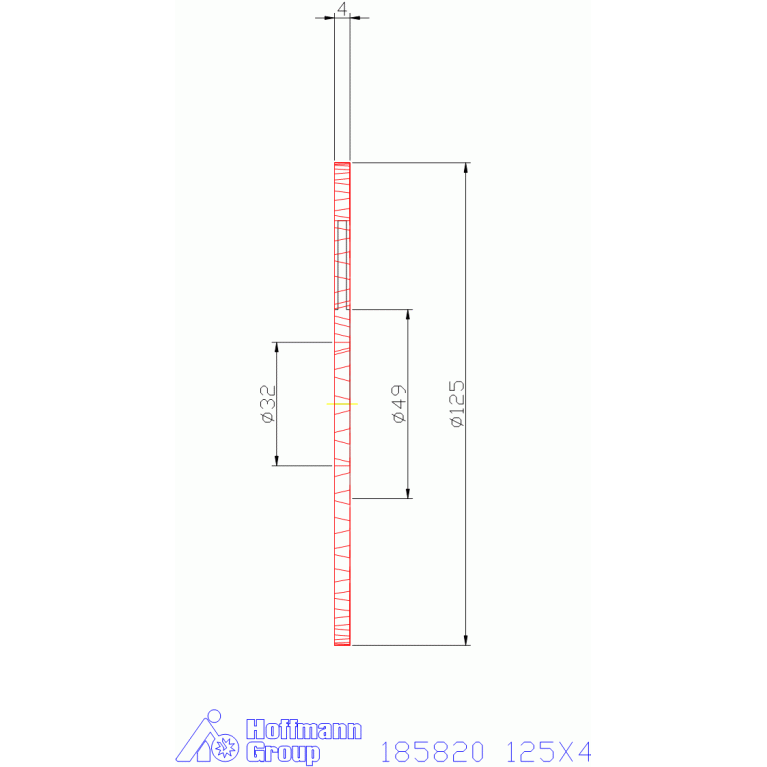

DC Cutting diameter

125 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DHUB Hub diameter

49 mm

DIN

FDA03202100

FamilyProducts

GARANT Side milling cutter

GRDMFG Grade manufacturers designation

HSS Co5

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

304-04 - Slotting cutter

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA03202100

MILTTY Mill tool type ISO

C - Disc mill - three side cutting

Name Identifying order number

185820 125X4

OAW Overall width

4 mm

Working process

No working processes available

WT Weight of item

0.2 kg

ZEFP Peripheral effective cutting edge count
