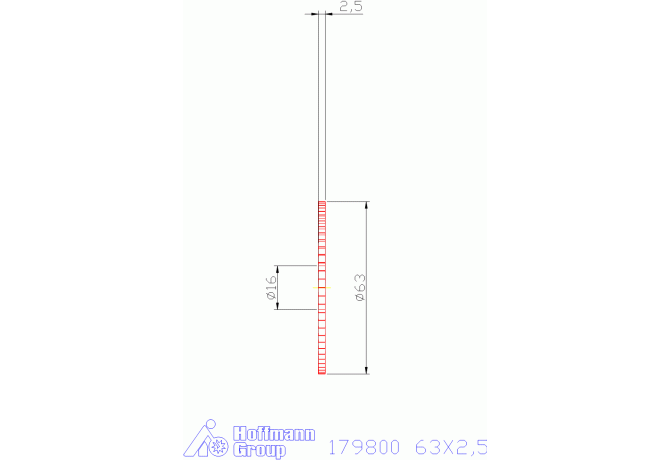

179800 63X2,5

Артикул: 179800 63X2,5

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

20 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CWN Cutting width minimum

2.5 mm

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

63 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

FDA01600200

FamilyProducts

RE-BO Solid carbide circular saw blade DIN 1837 A fine

GAMP Rake angle axial

3 Degree

GRDMFG Grade manufacturers designation

VHM

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

304-12 - Sawing blade

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA01600200

Name Identifying order number

179800 63X2,5

OAW Overall width

2.5 mm

STDLET Standard letter to the standard number

STDNO Standard

DIN1837

TTHSC Tooth style

Working process

FNU - Groove milling,FTR - Slot cutting

WT Weight of item

0.109 kg

ZEFP Peripheral effective cutting edge count
