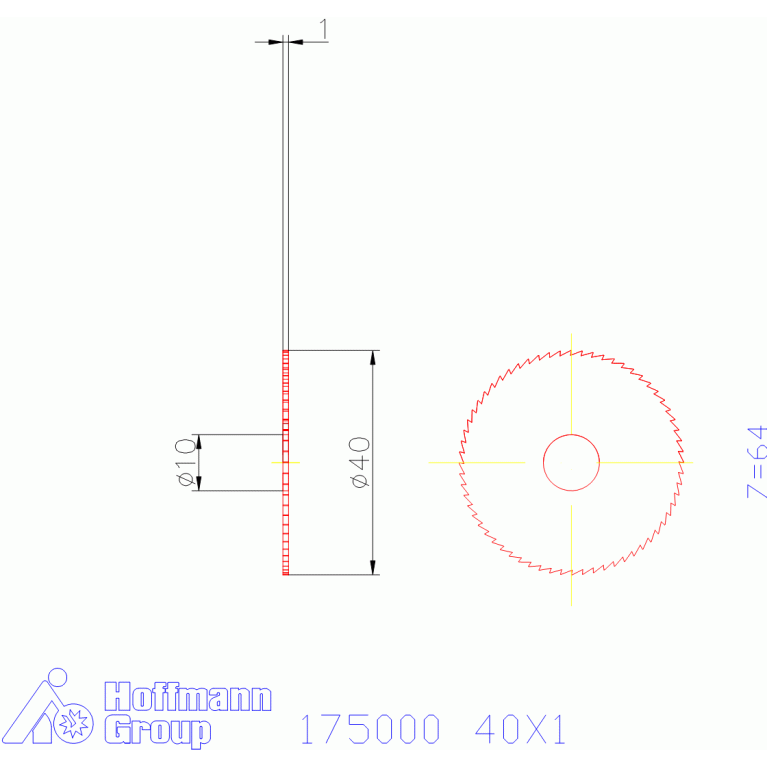

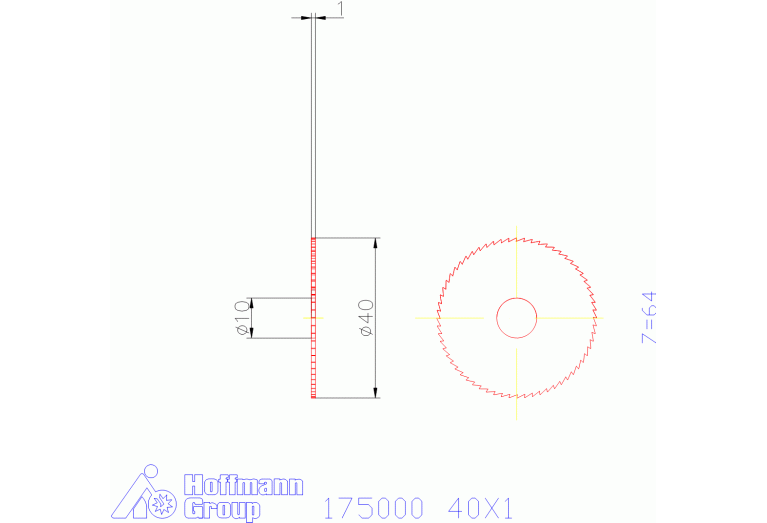

175000 40X1
175000 40X1
Артикул:
175000 40X1
В наличии
Характеристики
CDX Cutting depth maximum
13 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CWN Cutting width minimum
1 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
FDA01000200
FamilyProducts
RE-BO Metal circular sawblade fine
GAMP Rake angle axial
5 Degree
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
304-12 - Sawing blade
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA01000200
Name Identifying order number
175000 40X1
OAW Overall width
1 mm
TTHSC Tooth style
A
Working process
No working processes available
WT Weight of item
0.0085 kg
ZEFP Peripheral effective cutting edge count
64
