Главная Каталог продукции Toolunited 14 304-12 - Sawing blade 175000 125X3

175000 125X3

Артикул: 175000 125X3

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

45 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CWN Cutting width minimum

3 mm

CXSC Coolant exit style code

0 - Without coolant exit

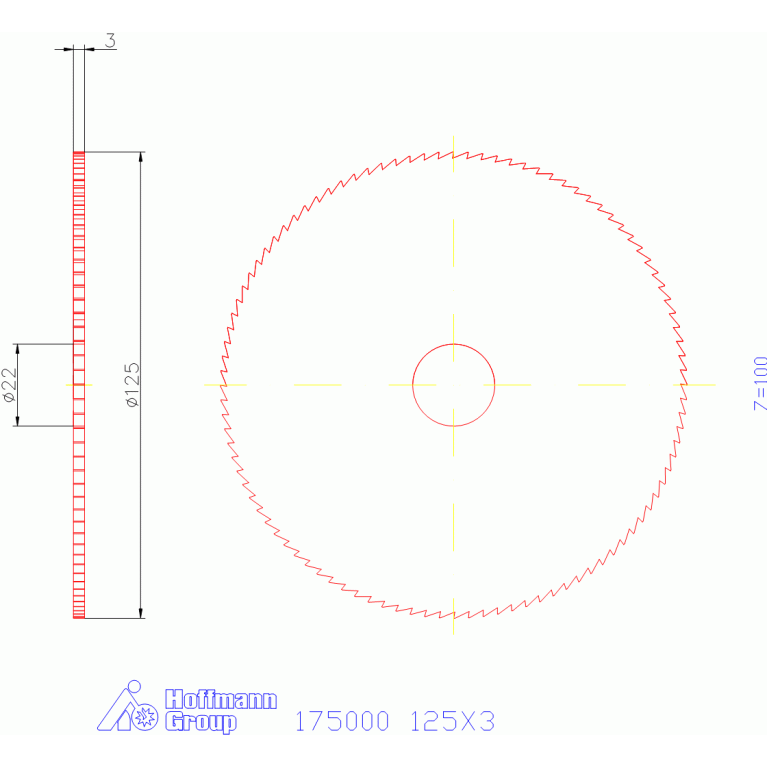

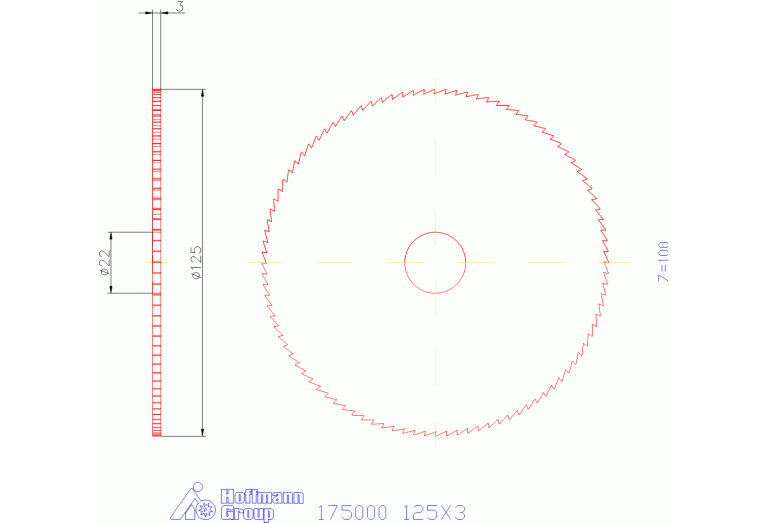

DC Cutting diameter

125 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

FDA02200200

FamilyProducts

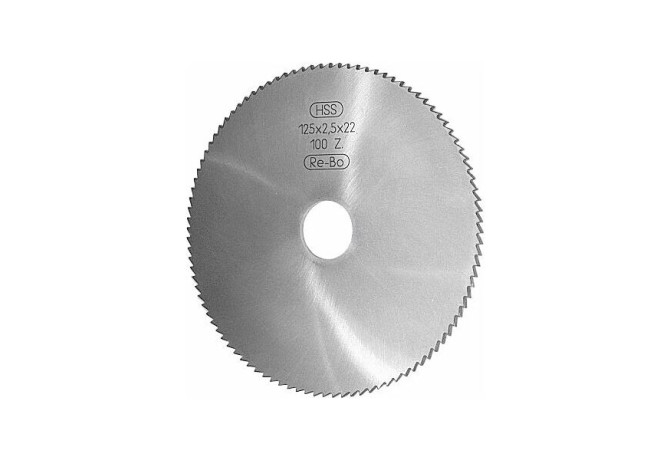

RE-BO Metal circular sawblade fine

GAMP Rake angle axial

5 Degree

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

304-12 - Sawing blade

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02200200

Name Identifying order number

175000 125X3

OAW Overall width

3 mm

TTHSC Tooth style

Working process

No working processes available

WT Weight of item

0.252 kg

ZEFP Peripheral effective cutting edge count

100
