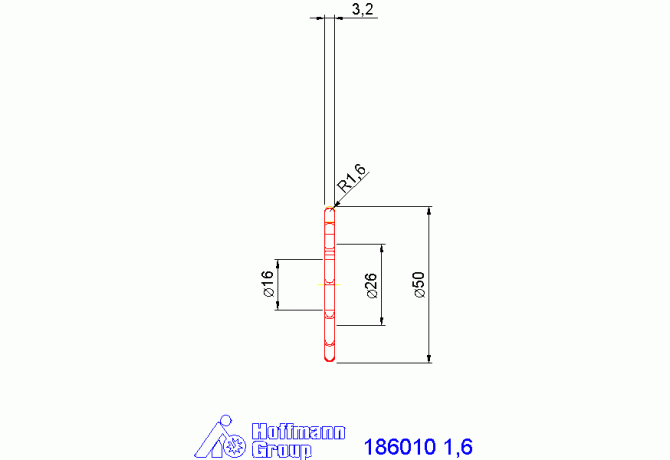

Главная Каталог продукции Toolunited 14 304-08 - Convex profile cutter 186010 1,6

186010 1,6

Артикул: 186010 1,6

В наличии

В корзину

Описание

Характеристики

COMPC Company code

HOG - Hoffmann Group

CWN Cutting width minimum

3.2 mm

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

FDA01602100

FamilyProducts

Radius form cutter convex solid carbide HPC TiAlN

GRDMFG Grade manufacturers designation

VHM

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

304-08 - Convex profile cutter

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA01602100

Name Identifying order number

186010 1,6

OAW Overall width

3.2 mm

PRFRAD Profile radius 1

1.6 mm

Working process

No working processes available

WT Weight of item

0.055 kg

ZEFP Peripheral effective cutting edge count
