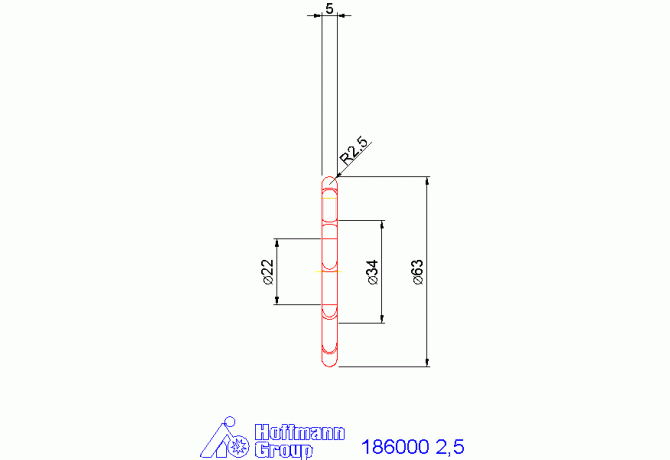

Главная Каталог продукции Toolunited 14 304-08 - Convex profile cutter 186000 2,5

186000 2,5

Артикул: 186000 2,5

В наличии

В корзину

Описание

Характеристики

COMPC Company code

HOG - Hoffmann Group

CWN Cutting width minimum

5 mm

DC Cutting diameter

63 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

FDA02202100

FamilyProducts

Radius form cutter convex HSS GARANT

GRDMFG Grade manufacturers designation

HSS

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

304-08 - Convex profile cutter

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02202100

Name Identifying order number

186000 2,5

OAW Overall width

5 mm

PRFRAD Profile radius 1

2.5 mm

Working process

No working processes available

WT Weight of item

0.07 kg

ZEFP Peripheral effective cutting edge count
