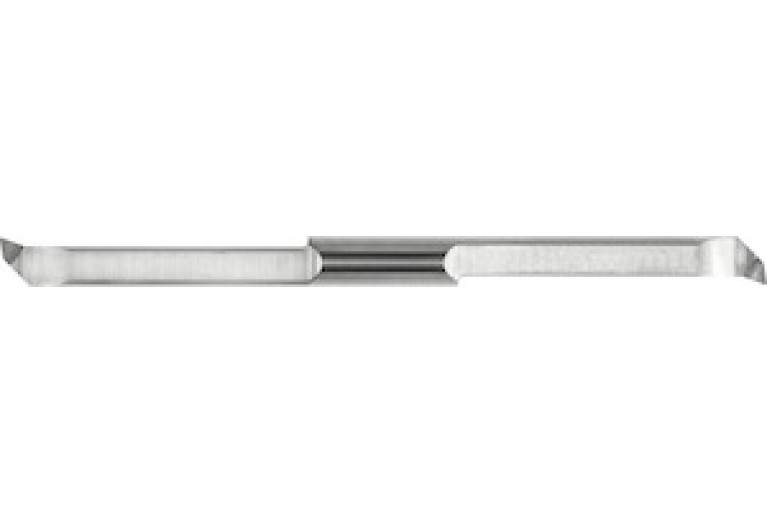

Главная Каталог продукции Toolunited 14 310-09 - Internal turning tool no 9 - offset side cutting design 270250 5,2

270250 5,2

Артикул: 270250 5,2

В наличии

В корзину

Описание

Характеристики

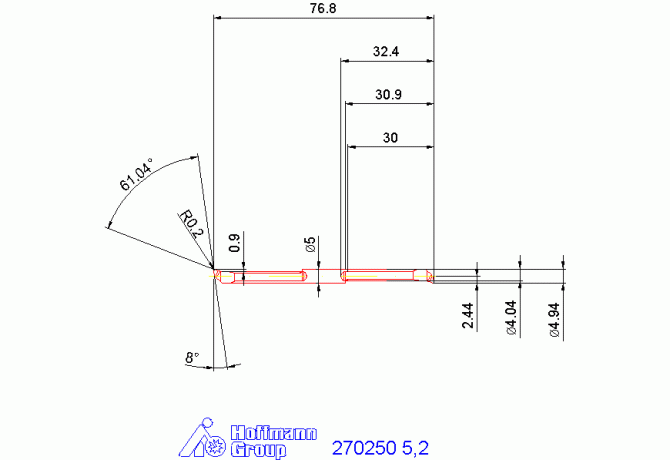

CDX Cutting depth maximum

30 mm

COMPC Company code

HOG - Hoffmann Group

Delivery state valid from

1/11/2017

DIN

HOG-MICROT5

DMIN Minimum bore diameter

4.94 mm

EPSR Insert included angle

61.04 Degree

FamilyProducts

GARANT Boring-out insert, internal, left-hand

HAND Cutting direction

L - Left

Interface codes

J6 /

ISYC Subclass

310-09 - Internal turning tool no 9 - offset side cutting design

KAPR Tool cutting edge angle

8 Degree

LH Head length

32.4 mm

LOC-03 B Shank width

4.04 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0050

LOC-03 DCONMS Diameter

5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HOG-MICROT5

Name Identifying order number

270250 5,2

OAL Overall length

76.8 mm

Working process

No working processes available

WT Weight of item

0.017 kg
