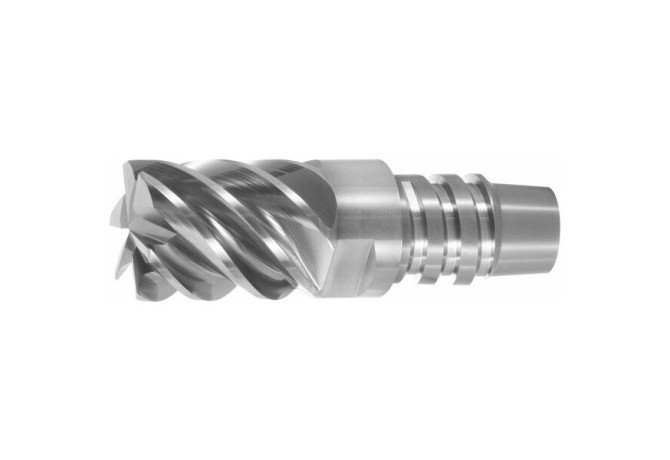

Главная Каталог продукции Toolunited 14 303-02 - Centre cutting end mill 210330 12

210330 12

Артикул: 210330 12

В наличии

В корзину

Описание

Характеристики

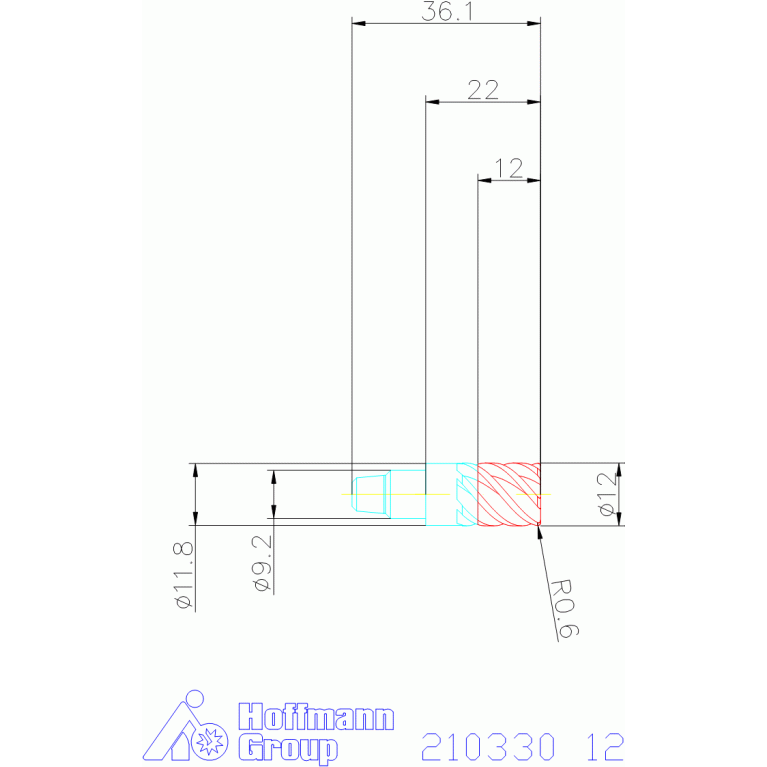

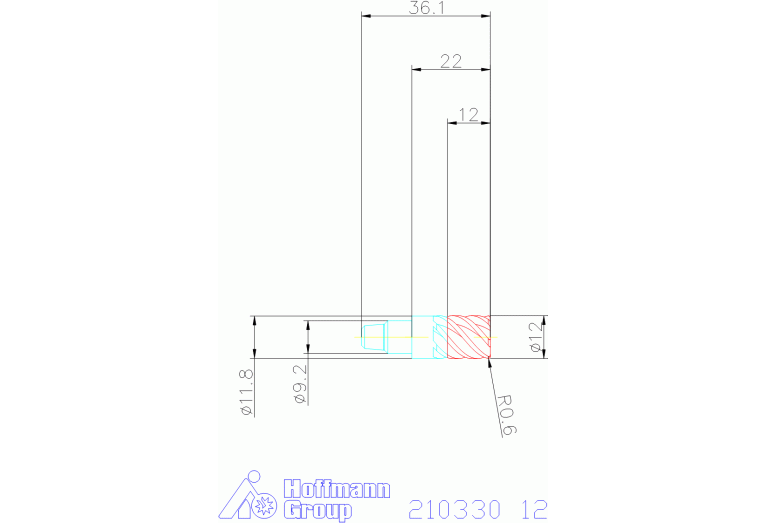

APMX Depth of cut maximum

15 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

HOG-PGK12

DN Neck diameter

11.8 mm

F71 Number of corner designs

FamilyProducts

GARANT Finish milling head, radius

FHA Flute helix angle

50 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

VHM/HB 730

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LOC-03 CZCMS Connection size code

0092

LOC-03 DCONMS Diameter

9.2 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HOG-PGK12

LPR Protruding length

22 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

210330 12

OAL Overall length

36.1 mm

RE Corner radius

0.6 mm

RMPX Ramping angle maximum

0 Degree

Working process

No working processes available

WT Weight of item

0.035 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
