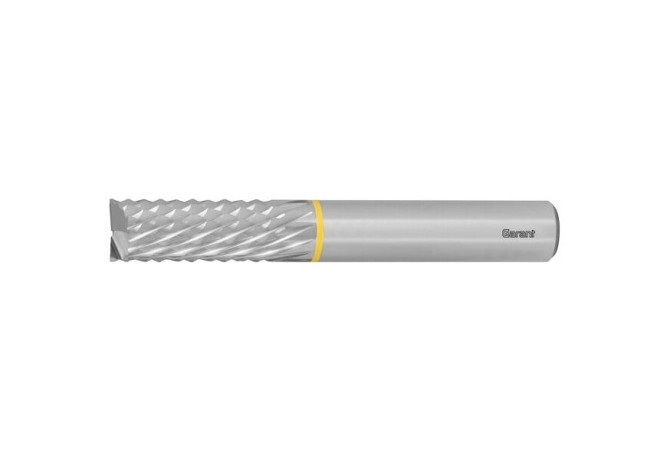

Главная Каталог продукции Toolunited 14 303-02 - Centre cutting end mill 209425 10

209425 10

Артикул: 209425 10

В наличии

В корзину

Описание

Характеристики

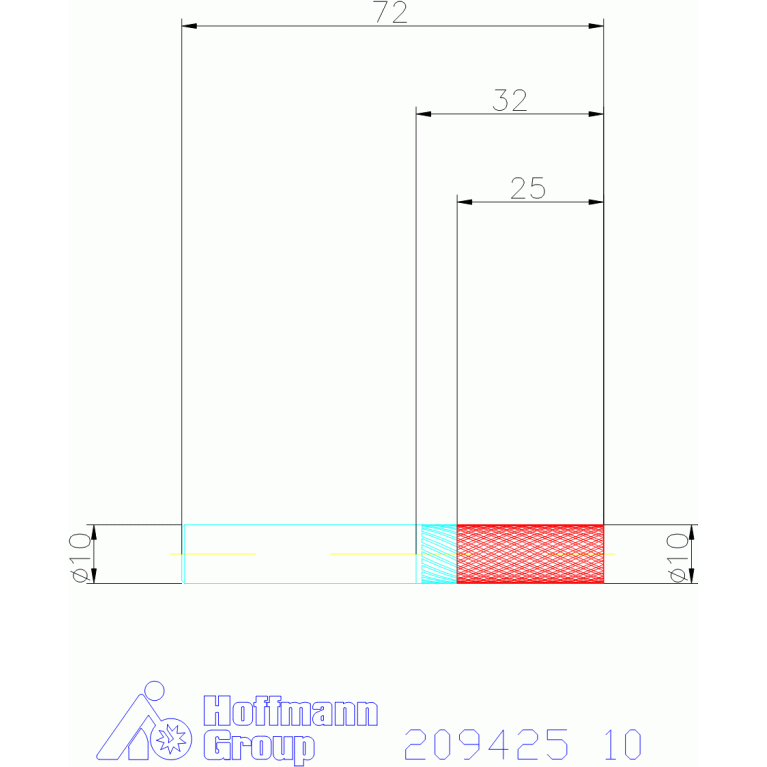

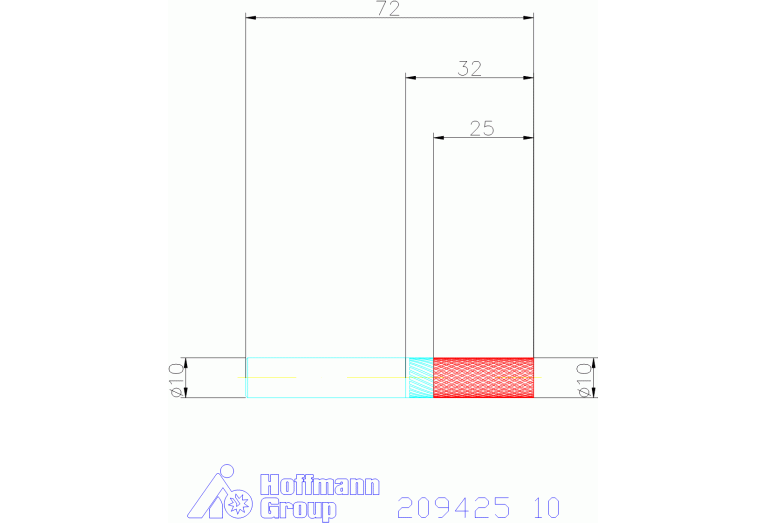

APMX Depth of cut maximum

25 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

10 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL01000105

F71 Number of corner designs

FamilyProducts

GARANT Solid carbide router cutter compacting cut

FHA Flute helix angle

25 Degree

GRDMFG Grade manufacturers designation

VHM

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000105

LPR Protruding length

32 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

209425 10

OAL Overall length

72 mm

RMPX Ramping angle maximum

0 Degree

Working process

No working processes available

WT Weight of item

0.0745 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
