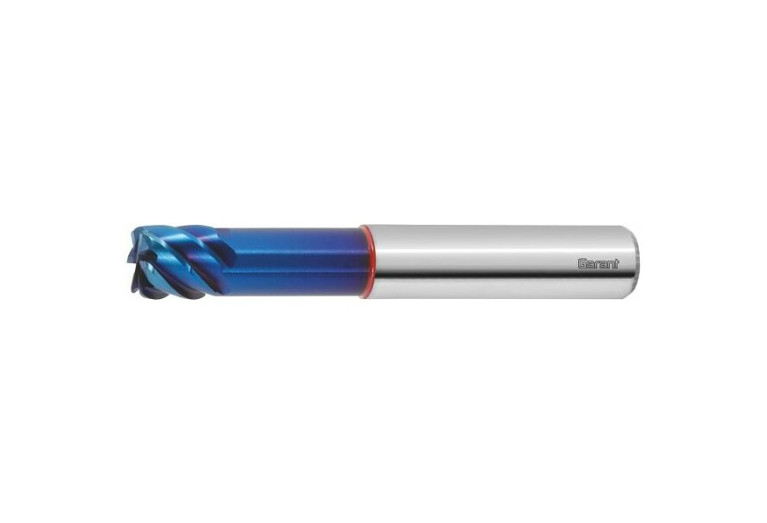

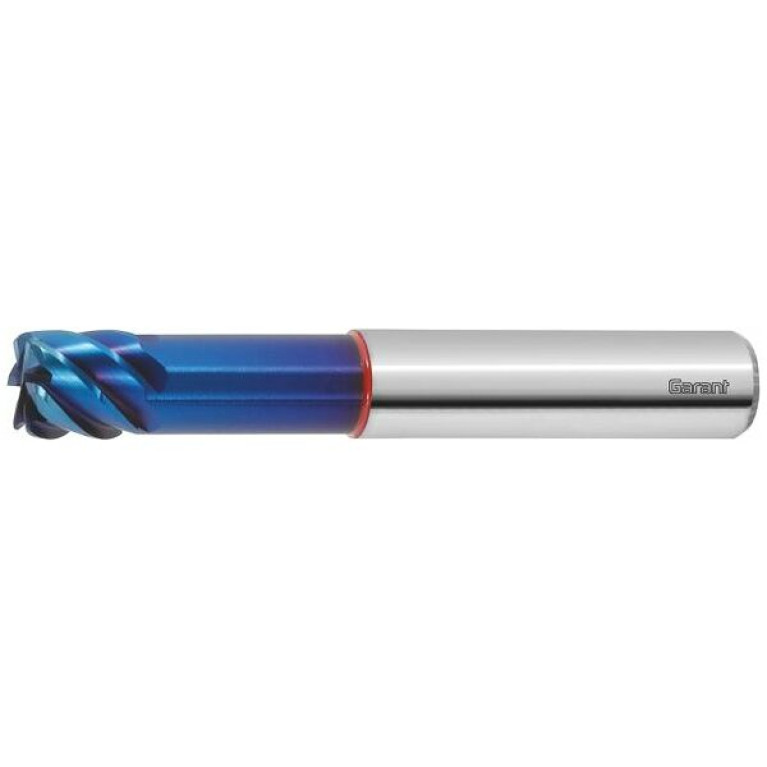

Главная Каталог продукции Toolunited 14 303-02 - Centre cutting end mill 206372 6/0,8

206372 6/0,8

Артикул: 206372 6/0,8

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

7 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

6 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL00600105

DN Neck diameter

5.5 mm

F71 Number of corner designs

FamilyProducts

GARANT Solid carbide torus cutter HPC

FHA Flute helix angle

50 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

30 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LH Head length

7 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LPR Protruding length

24 mm

MILTTY Mill tool type ISO

N - Torus End Mill

Name Identifying order number

206372 6/0,8

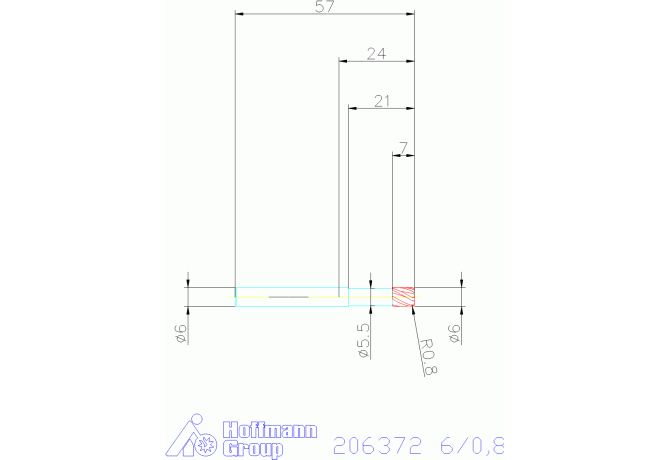

OAL Overall length

57 mm

RE Corner radius

0.8 mm

RMPX Ramping angle maximum

0 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FFO - Die milling,FPL - Face milling

WT Weight of item

0.022 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
