Главная Каталог продукции Toolunited 14 303-02 - Centre cutting end mill 206355 10/1,0

206355 10/1,0

206355 10/1,0 206355 10/1,0

206355 10/1,0

Hoffmann Group
Артикул: 206355 10/1,0
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
22 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TiAlN
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
10 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL01000105
DN Neck diameter
9.5 mm
F71 Number of corner designs
1
FamilyProducts
GARANT torus end mill, carbide, HA TiAlN HPC
FHA Flute helix angle
38 Degree
GRDMFG Grade manufacturers designation
VHM TiAlN
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
303-02 - Centre cutting end mill
LH Head length
22 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01000105
LPR Protruding length
24 mm
MILTTY Mill tool type ISO
N - Torus End Mill
Name Identifying order number
206355 10/1,0

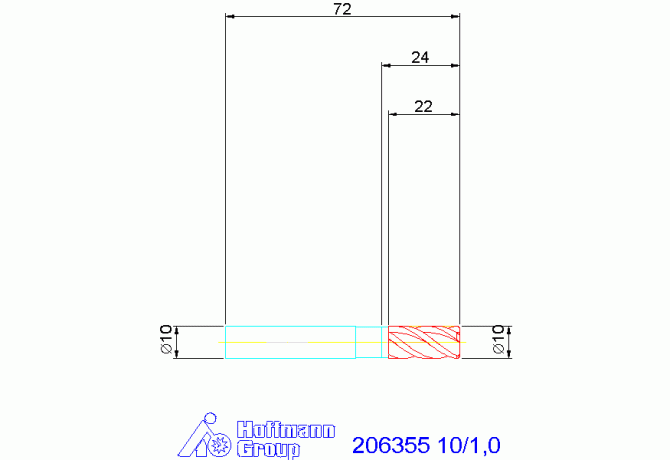

OAL Overall length
72 mm
RE Corner radius
1 mm
RMPX Ramping angle maximum
0 Degree
Working process
No working processes available
WT Weight of item
0.115 kg
ZEFP Peripheral effective cutting edge count
4
ZNC Cutting edge centre count
1
