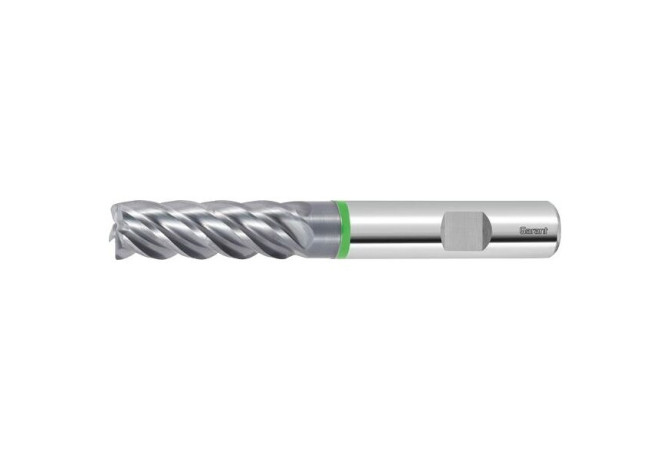

Главная Каталог продукции Toolunited 14 303-02 - Centre cutting end mill 203089 14

203089 14

Артикул: 203089 14

В наличии

В корзину

Описание

Характеристики

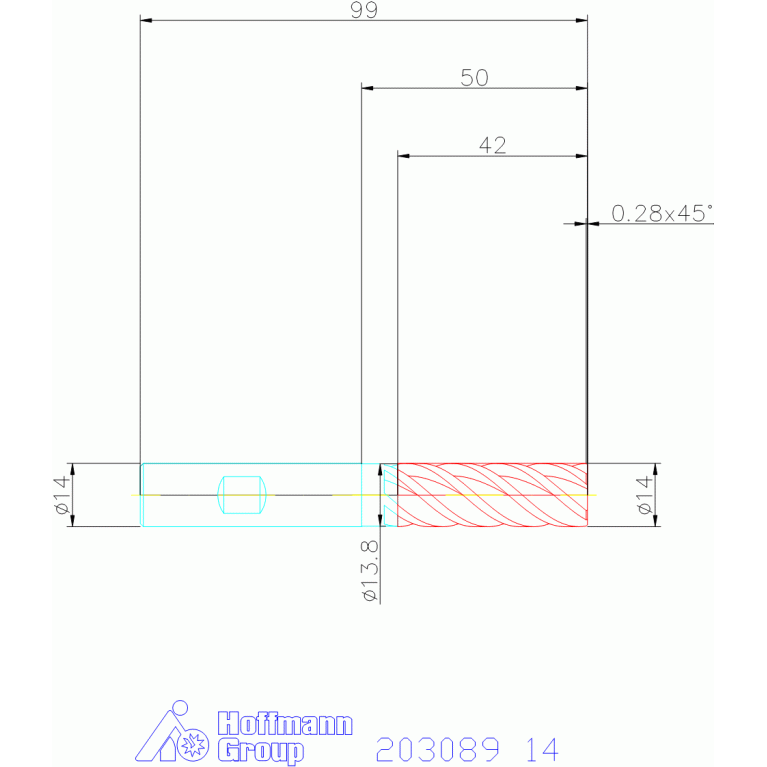

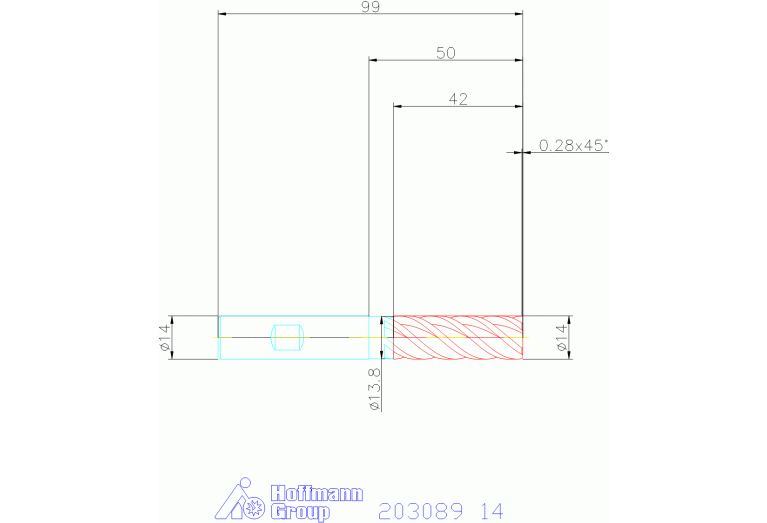

APMX Depth of cut maximum

42 mm

CHW Corner chamfer width

0.28 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

14 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL01401005

DN Neck diameter

13.8 mm

F71 Number of corner designs

FamilyProducts

GARANT Solid carbide end mill TPC

FHA Flute helix angle

41.5 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

KCH Corner chamfer angle

45 Degree

LH Head length

42 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0140

LOC-03 DCONMS Diameter

14 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01401005

LPR Protruding length

42 mm

LS Shank length

45 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

203089 14

OAL Overall length

99 mm

RMPX Ramping angle maximum

0.5 Degree

Working process

No working processes available

WT Weight of item

0.18 kg

ZEFF Face effective cutting edge count

ZNC Cutting edge centre count
