Главная Каталог продукции Toolunited 14 303-02 - Centre cutting end mill 202258 16

202258 16

Артикул: 202258 16

В наличии

В корзину

Описание

Характеристики

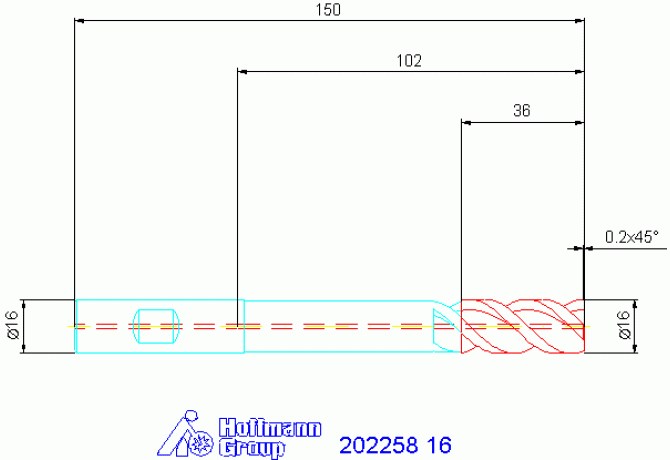

APMX Depth of cut maximum

36 mm

BMC Body material code

H - Solid carbide

CHW Corner chamfer width

0.2 mm

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL01600115

DN Neck diameter

15 mm

F71 Number of corner designs

FamilyProducts

Solid carbide roughing end mill with internal cool

FHA Flute helix angle

45 Degree

GRDMFG Grade manufacturers designation

VHM ZOX

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

KCH Corner chamfer angle

45 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600115

LPR Protruding length

102 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

202258 16

OAL Overall length

150 mm

RMPX Ramping angle maximum

0 Degree

Working process

No working processes available

WT Weight of item

0.214 kg

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
