Главная Каталог продукции Toolunited 14 303-02 - Centre cutting end mill 201840 0,6

201840 0,6

Артикул: 201840 0,6

В наличии

В корзину

Описание

Характеристики

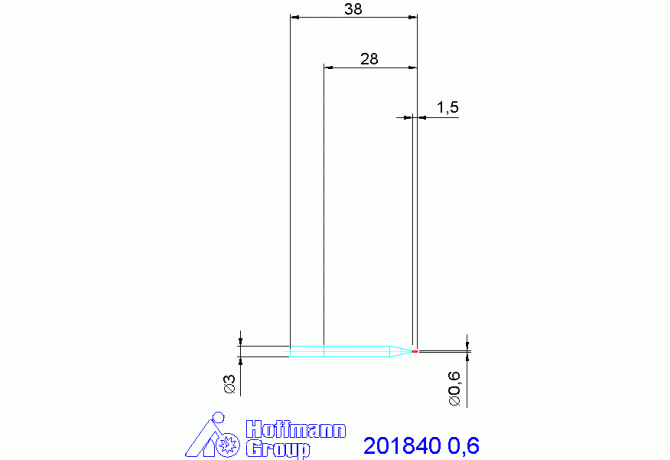

APMX Depth of cut maximum

1.5 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

0.6 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL00300105

F71 Number of corner designs

FamilyProducts

Solid carbide mini slot drill TiAlN HOLEX

FHA Flute helix angle

30 Degree

GRDMFG Grade manufacturers designation

VHM TiAlN

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0030

LOC-03 DCONMS Diameter

3 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00300105

LPR Protruding length

28 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

201840 0,6

OAL Overall length

38 mm

RMPX Ramping angle maximum

0 Degree

Working process

No working processes available

WT Weight of item

0.004 kg

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
