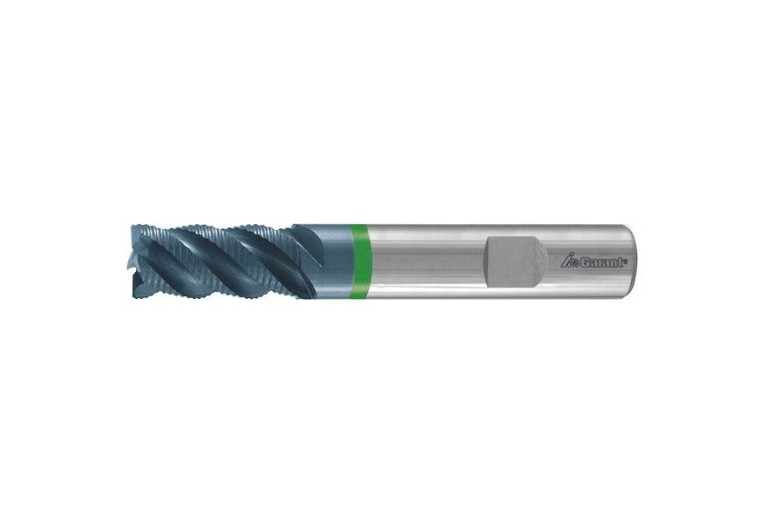

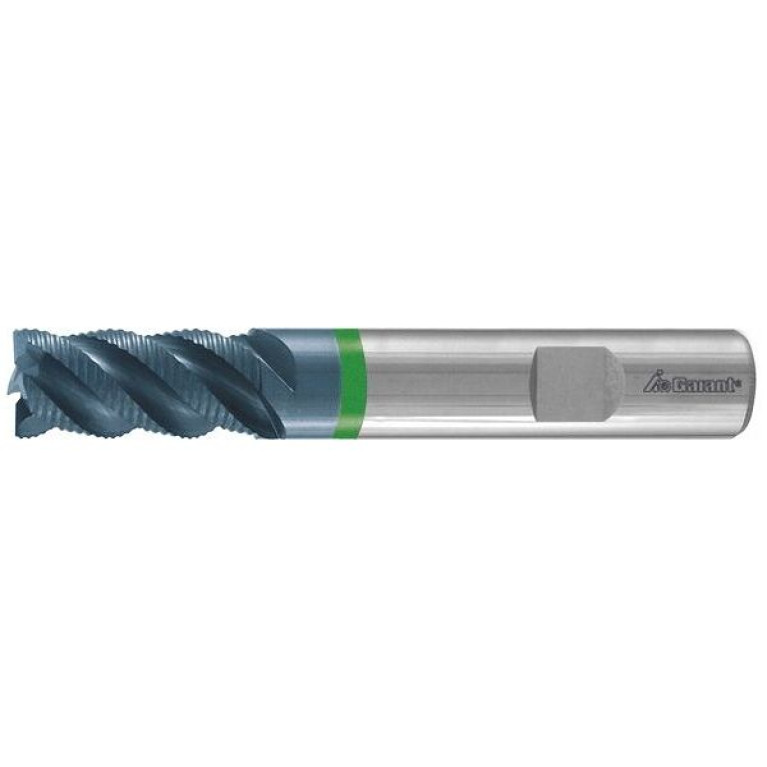

Главная Каталог продукции Toolunited 14 303-02 - Centre cutting end mill 192895 20

192895 20

Артикул: 192895 20

В наличии

В корзину

Описание

Характеристики

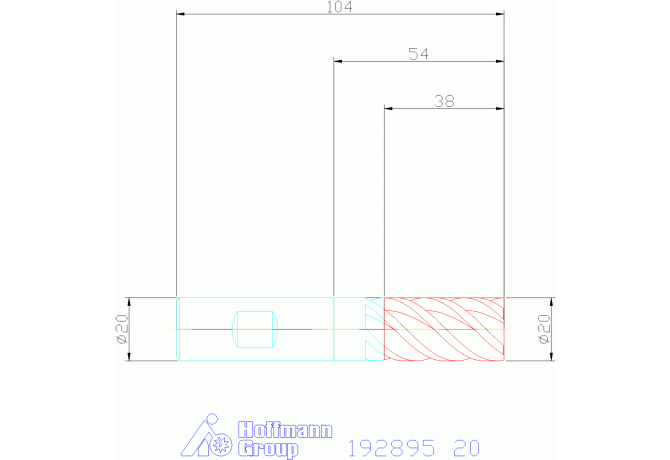

APMX Depth of cut maximum

38 mm

CHW Corner chamfer width

0.2 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL02001005

F71 Number of corner designs

FamilyProducts

GARANT MTC roughing end mill SPM

FHA Flute helix angle

45 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSS SPM

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

KCH Corner chamfer angle

45 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02001005

LPR Protruding length

56 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

192895 20

OAL Overall length

104 mm

RMPX Ramping angle maximum

0 Degree

STDNO Standard

DIN844

Working process

No working processes available

WT Weight of item

0.227 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
