Главная Каталог продукции Toolunited 14 303-02 - Centre cutting end mill 191590 15

191590 15

Артикул: 191590 15

В наличии

В корзину

Описание

Характеристики

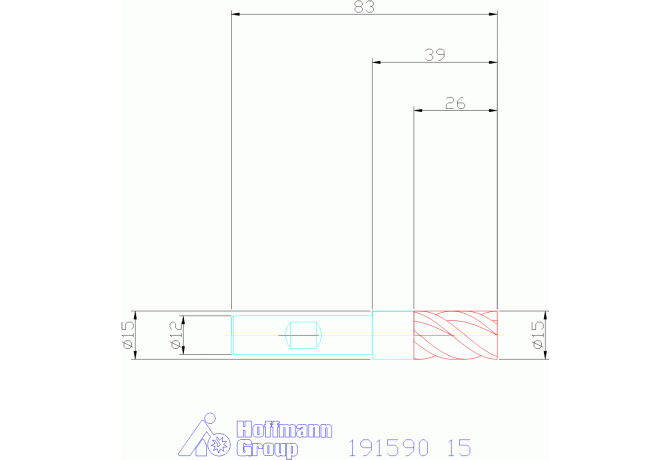

APMX Depth of cut maximum

26 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiAlN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

15 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL01201005

F71 Number of corner designs

FamilyProducts

HOLEX End mill HSS-Co8

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01201005

LPR Protruding length

39 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

191590 15

OAL Overall length

83 mm

RMPX Ramping angle maximum

0 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN844

Working process

No working processes available

WT Weight of item

0.078 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
