191380 6,5
191380 6,5
Артикул:
191380 6,5
В наличии
Характеристики
APMX Depth of cut maximum
10 mm
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiAlN
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
6.5 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL00801005
F71 Number of corner designs
1
FamilyProducts
HOLEX Mini slot drill HSS-PM
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
303-02 - Centre cutting end mill
LH Head length
10.69 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00801005
LPR Protruding length
15 mm
MILTTY Mill tool type ISO
H - Slotting end mill (one or more indexable insert pro cutting edge) 90°
Name Identifying order number
191380 6,5

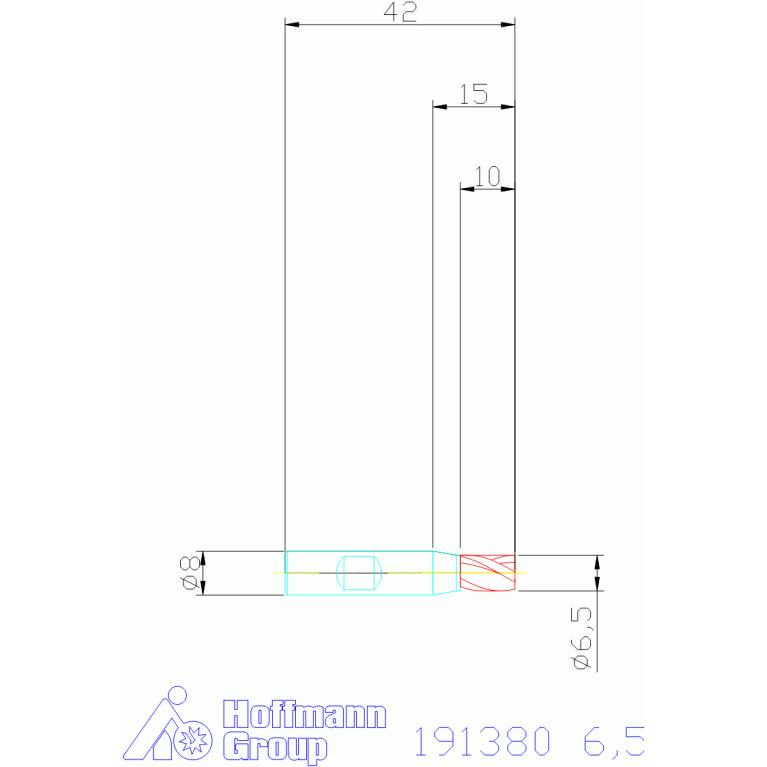

OAL Overall length
42 mm
RMPX Ramping angle maximum
0 Degree
Working process
No working processes available
WT Weight of item
0.015 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
ZNC Cutting edge centre count
1
