Главная Каталог продукции Toolunited 14 303-02 - Centre cutting end mill 191260 4

191260 4

Артикул: 191260 4

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

11 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiAlN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL00601005

F71 Number of corner designs

FamilyProducts

HOLEX Slot drill HSS-Co8

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LH Head length

13.6 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00601005

LPR Protruding length

19 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

191260 4

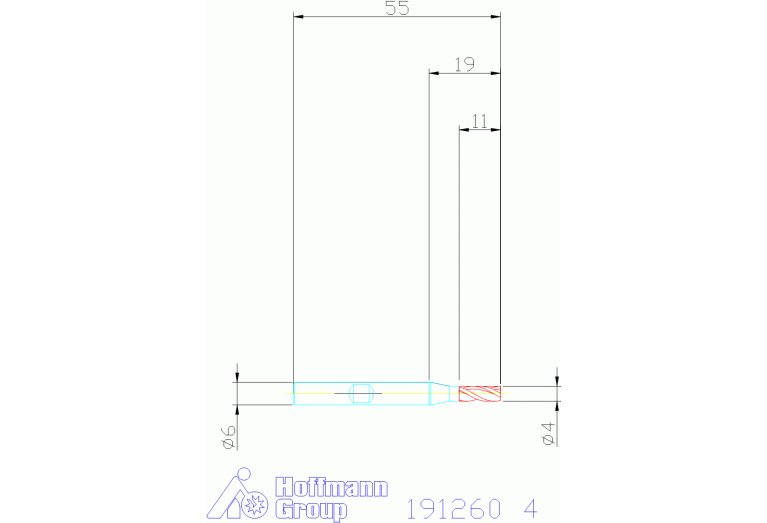

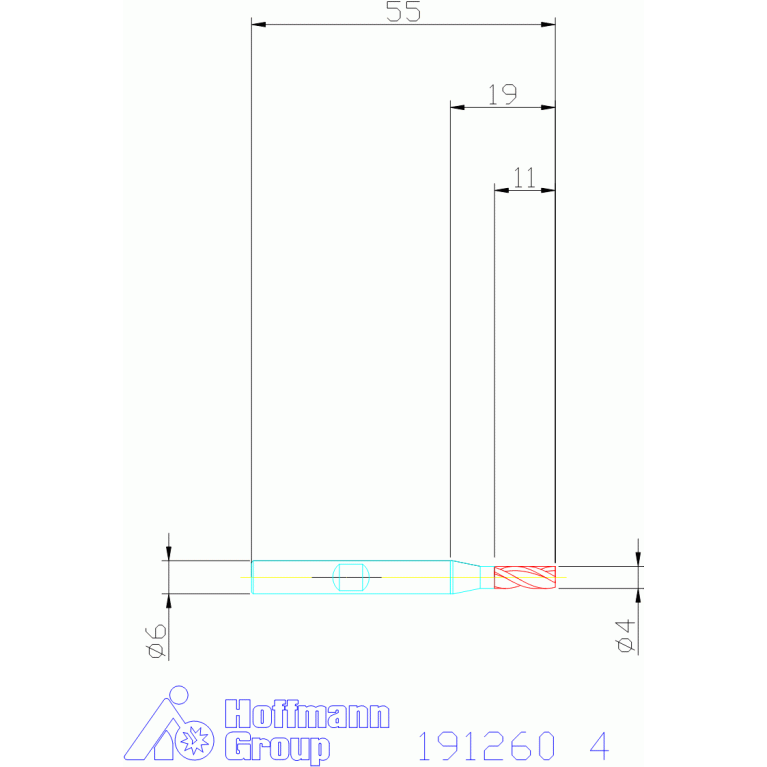

OAL Overall length

55 mm

RMPX Ramping angle maximum

0 Degree

Working process

No working processes available

WT Weight of item

0.01 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
