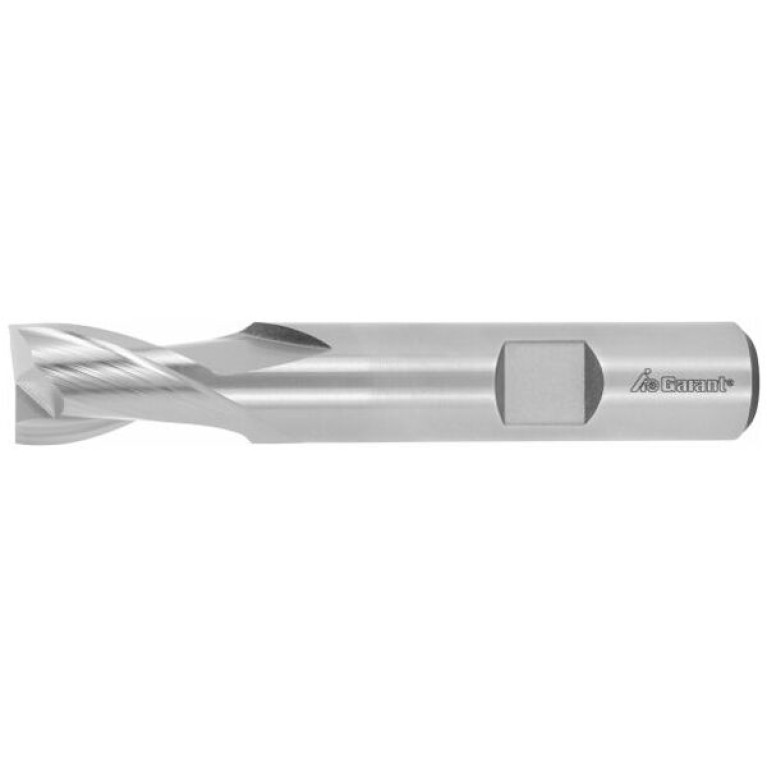

Главная Каталог продукции Toolunited 14 303-02 - Centre cutting end mill 191000 21,7

191000 21,7

Артикул: 191000 21,7

В наличии

В корзину

Описание

Характеристики

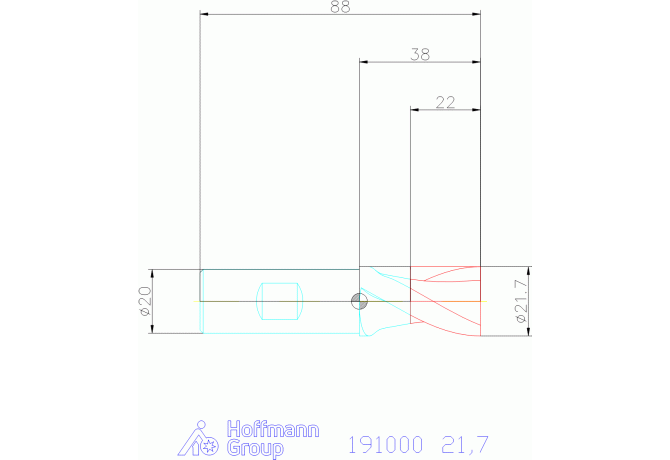

APMX Depth of cut maximum

22 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

21.7 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL02001005

F71 Number of corner designs

FamilyProducts

GARANT Slot drill HSS-Co8

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSS-Co8

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02001005

LPR Protruding length

38 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

191000 21,7

OAL Overall length

88 mm

RMPX Ramping angle maximum

0 Degree

Working process

FEC - Square shoulder milling,FNU - Groove milling,FNB - Slotting

WT Weight of item

0.205 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
