Главная Каталог продукции Toolunited 14 303-07 - Die end mill EB-A2 12-22/25/1.5C16M160 IC903

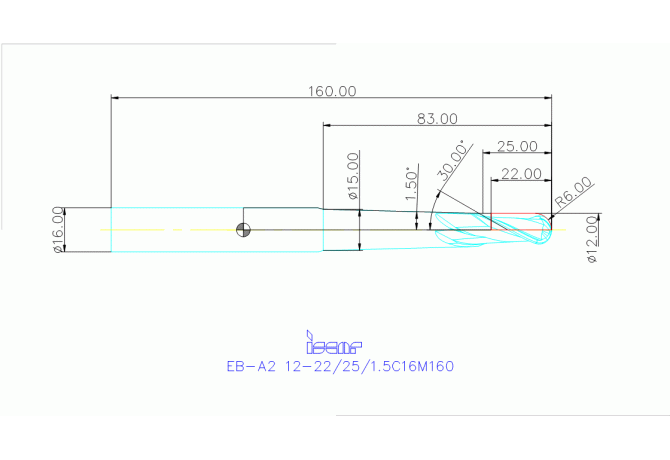

EB-A2 12-22/25/1.5C16M160 IC903

Артикул: 5650056

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

22 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiAlN

COMPC Company code

IS - Iscar

CRCLMFG Chip removal class mfg

IC03

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/2/2018

DIN

ZYL01600105

DN Neck diameter

15 mm

FamilyProducts

2 Tapered Flutes, 30\S\0 Helix Solid Carbide Ball Nose Endmills with Relieved Ne

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC903

HAND Cutting direction

R - Right

ID Technical product number

5650056

Interface codes

J6 / J61

ISO

ZYL01G1600h$06

ISYC Subclass

303-07 - Die end mill

LF Functional length

160 mm

LH Head length

83 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G1600h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600105

Name Identifying order number

EB-A2 12-22/25/1.5C16M160 IC903

OAL Overall length

160 mm

PRFA Profile included angle

3 Degree

PRFRAD Profile radius 1

6 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.36 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
