Главная Каталог продукции Toolunited 14 303-07 - Die end mill EB-A2 06-12/15/1.5C08M110 IC903

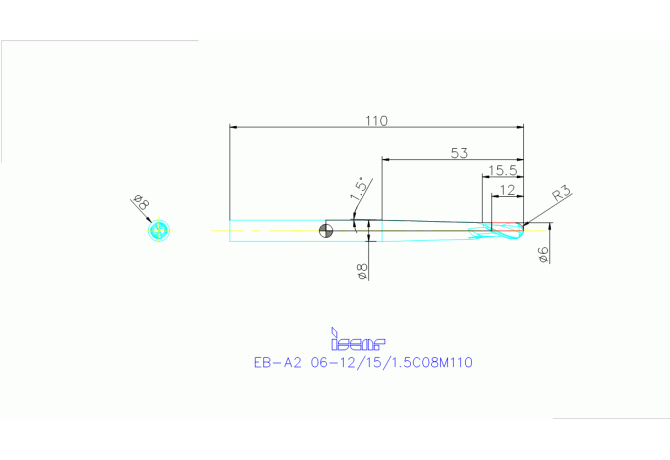

EB-A2 06-12/15/1.5C08M110 IC903

Артикул: 5650041

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

12 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiAlN

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

6 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL00800105

DN Neck diameter

8 mm

FamilyProducts

2 Tapered Flutes, 30° Helix Solid Carbide Ball Nose Endmills with Relieved Necks for Materials up to 65 HRC

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC903

HAND Cutting direction

R - Right

ID Technical product number

5650041

Interface codes

J6 / J61

ISO

ZYL01F8000h$06

ISYC Subclass

303-07 - Die end mill

LF Functional length

110 mm

LH Head length

53 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01F8000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

Name Identifying order number

EB-A2 06-12/15/1.5C08M110 IC903

OAL Overall length

110 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.07 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
