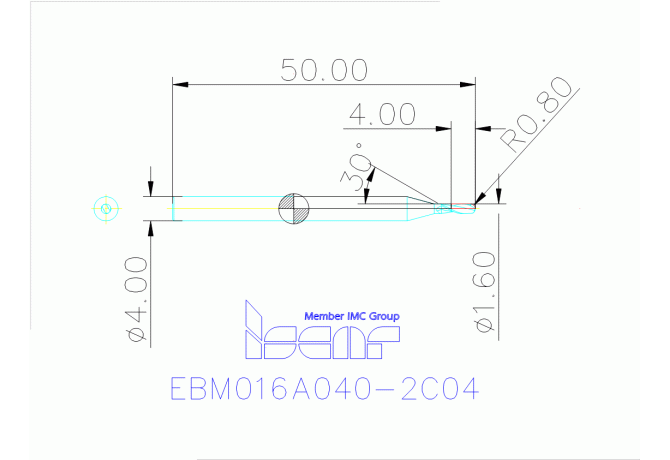

EBM016A040-2C04 IC08
EBM016A040-2C04 IC08
Артикул:
5621201
В наличии
Характеристики
APMX Depth of cut maximum
4 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
Uncoated
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
1.6 mm
DCP Data chip provision
0 - Without data chip
DIN
ZYL00400105
FamilyProducts
2 Flute, 30° Helix Medium Length Solid Carbide Miniature Ball Nose Endmills
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
IC08
HAND Cutting direction
R - Right
ID Technical product number
5621201
Interface codes
J6 / J61
ISO
ZYL01F4000h$06
ISYC Subclass
303-06 - Ball-nosed end mill
LF Functional length
50 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0040
LOC-03 DCONMS Diameter
4 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL01F4000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00400105
Name Identifying order number
EBM016A040-2C04 IC08
OAL Overall length
50 mm
PRFRAD Profile radius 1
0.8 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
