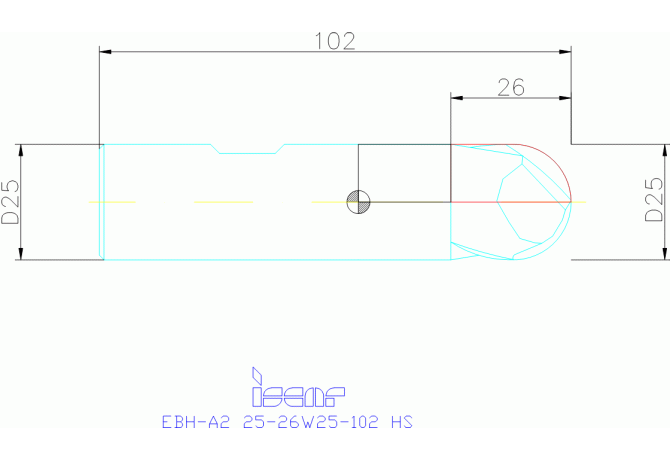

EBH-A2 25-26W25-102 HS MPC

EBH-A2 25-26W25-102 HS MPC EBH-A2 25-26W25-102 HS MPC

EBH-A2 25-26W25-102 HS MPC

Iscar
Артикул: 3121068
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
26 mm
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiN
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
DIN
ZYL02501005
FamilyProducts
HSS short ball nose endmills, 2 flute 30° helix.
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
MPC
HAND Cutting direction
R - Right
ID Technical product number
3121068
Interface codes
J6 / J61
ISO
ZYL10G2500h$06
ISYC Subclass
303-06 - Ball-nosed end mill
LF Functional length
70 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL10G2500h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501005
Name Identifying order number
EBH-A2 25-26W25-102 HS MPC
OAL Overall length
102 mm
PRFRAD Profile radius 1
12.5 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
