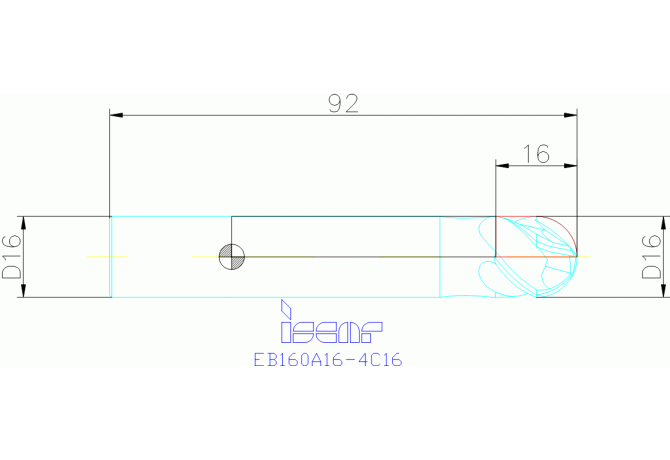

EB160A16-4C16 IC900
EB160A16-4C16 IC900
Артикул:
5620578
В наличии
Характеристики
APMX Depth of cut maximum
16 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiAlN
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
16 mm
DCP Data chip provision
0 - Without data chip
DIN
ZYL01600105
FamilyProducts
4 Flute, 30° Helix Short Solid Carbide Ball Nose Endmills
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
IC900
HAND Cutting direction
R - Right
ID Technical product number
5620578
Interface codes
J6 / J61
ISO
ZYL01G1600h$06
ISYC Subclass
303-06 - Ball-nosed end mill
LF Functional length
92 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL01G1600h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01600105
Name Identifying order number
EB160A16-4C16 IC900
OAL Overall length
92 mm
PRFRAD Profile radius 1
8 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
WT Weight of item
0.24 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
