Главная Каталог продукции Toolunited 14 303-06 - Ball-nosed end mill EB-A2 030-045/16C6M55 IC903

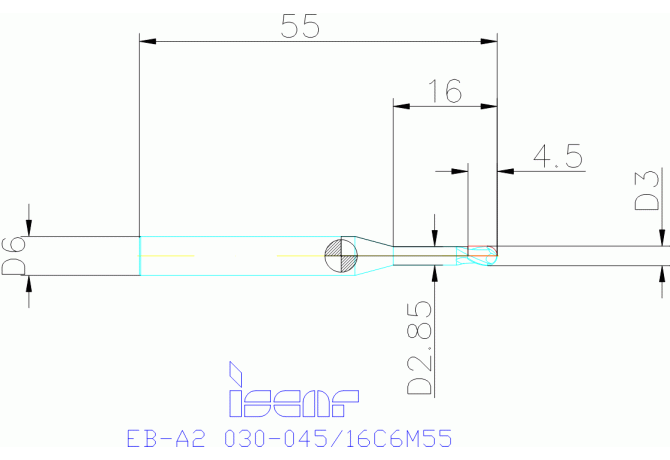

EB-A2 030-045/16C6M55 IC903

Артикул: 5650340

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

4.5 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

3 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL00600105

DN Neck diameter

2.85 mm

FamilyProducts

2 Flute, 30° Helix Rib Processing Solid Carbide Ball Nose Endmills for Materials up to 55 HRc

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

IC903

HAND Cutting direction

R - Right

ID Technical product number

5650340

Interface codes

J6 / J61

ISO

ZYL01F6000h$06

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

55 mm

LH Head length

16 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01F6000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

Name Identifying order number

EB-A2 030-045/16C6M55 IC903

OAL Overall length

55 mm

PRFRAD Profile radius 1

1.5 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.02 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
