Главная Каталог продукции Toolunited 14 303-06 - Ball-nosed end mill 207440 8

207440 8

Артикул: 207440 8

В наличии

В корзину

Описание

Характеристики

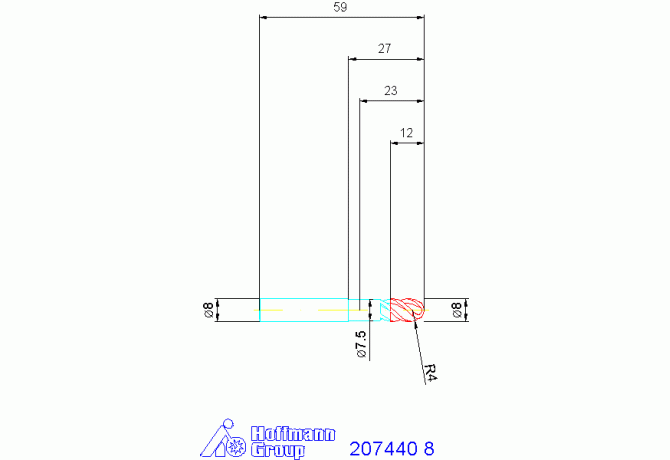

APMX Depth of cut maximum

12 mm

COMPC Company code

HOG - Hoffmann Group

DC Cutting diameter

8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DN Neck diameter

7.5 mm

FamilyProducts

solid carbide radius end mill

FHA Flute helix angle

45 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

Interface codes

ISYC Subclass

303-06 - Ball-nosed end mill

LH Head length

12 mm

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LPR Protruding length

23 mm

Name Identifying order number

207440 8

OAL Overall length

59 mm

PRFRAD Profile radius 1

4 mm

Working process

FFO - Die milling

WT Weight of item

0.035 kg

ZNC Cutting edge centre count
