Главная Каталог продукции Toolunited 14 303-06 - Ball-nosed end mill 207340 8

207340 8

Артикул: 207340 8

В наличии

В корзину

Описание

Характеристики

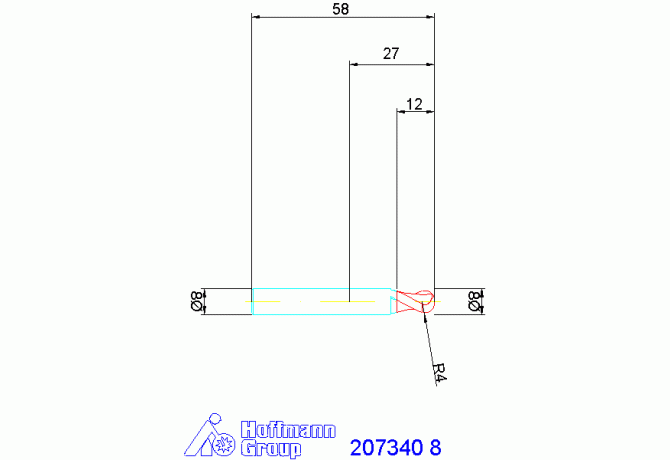

APMX Depth of cut maximum

12 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiAlN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL00800105

FamilyProducts

Solid carbide ball-nosed slot drill HPC TiAlN GARA

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

VHM TiAlN

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

LPR Protruding length

27 mm

Name Identifying order number

207340 8

OAL Overall length

58 mm

PRFRAD Profile radius 1

4 mm

Working process

FFO - Die milling

WT Weight of item

0.036 kg

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
