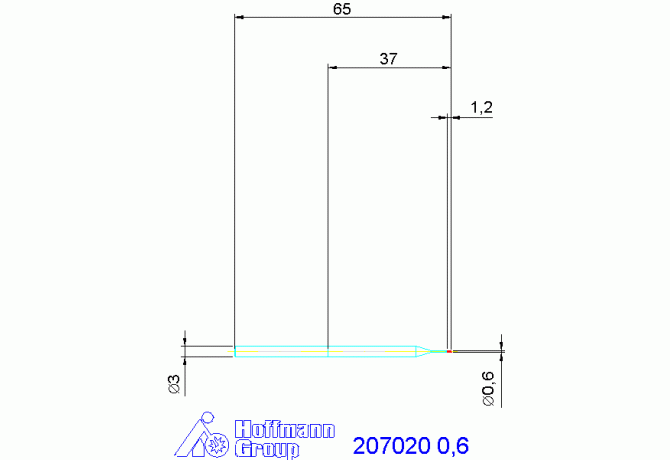

207020 0,6
207020 0,6
Артикул:
207020 0,6
В наличии
Характеристики
APMX Depth of cut maximum
1.2 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiAlN
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
0.6 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL00300105
DN Neck diameter
0.58 mm
FamilyProducts
Solid carbide ball-nosed slot drill extra long ZOX
FHA Flute helix angle
45 Degree
GRDMFG Grade manufacturers designation
VHM TiAlN
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
303-06 - Ball-nosed end mill
LH Head length
1.2 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0030
LOC-03 DCONMS Diameter
3 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00300105
LPR Protruding length
37 mm
Name Identifying order number
207020 0,6
OAL Overall length
65 mm
PRFRAD Profile radius 1
0.3 mm
Working process
No working processes available
WT Weight of item
0.003 kg
ZEFP Peripheral effective cutting edge count
2
ZNC Cutting edge centre count
1
